| Category | |
| Manufacturer Name | |
| Applications | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Frequency | |
| Height | |
| Input Connector | |
| Input Type | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage | |
| Width |

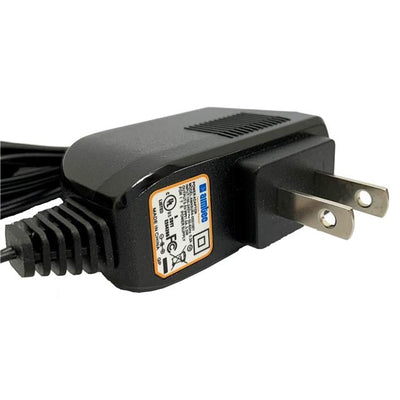

The Aimtec AMA5AR1-033160Y is an AC/DC wall mount adapter from the AMA5-Y series, designed for commercial applications. It provides a stable 3.3VDC output with a maximum current of 1.6A, delivering up to 5.28W of power.
This adapter features a universal input voltage range of 90-264VAC and operates efficiently, complying with DoE Level VI standards. It is built to meet IEC62368-1 safety standards and offers high isolation voltage of 3000VAC for enhanced reliability and system safety. Protection features include output short circuit and over-current protection.
The unit operates within a temperature range of 0°C to +40°C. Its physical dimensions are 64.0mm in length, 25.7mm in width, and 75.2mm in height. The output connector is a Barrel Plug with a 1.35mm inner diameter and 3.5mm outer diameter, with a cord length of 1.50 meters (59 inches).
Applications include powering various electronic systems requiring a reliable and efficient AC to DC conversion in a compact wall-mount form factor.
The output voltage is 3.3 VDC.
The maximum output current is 1.6 A.
The input voltage range is 90 to 264 VAC.
The operating temperature range is 0°C to 40°C.
It uses a barrel plug with a 1.35 mm inner diameter and 3.5 mm outer diameter.
The typical efficiency is 74%.
The no-load power consumption is 100 mW.
