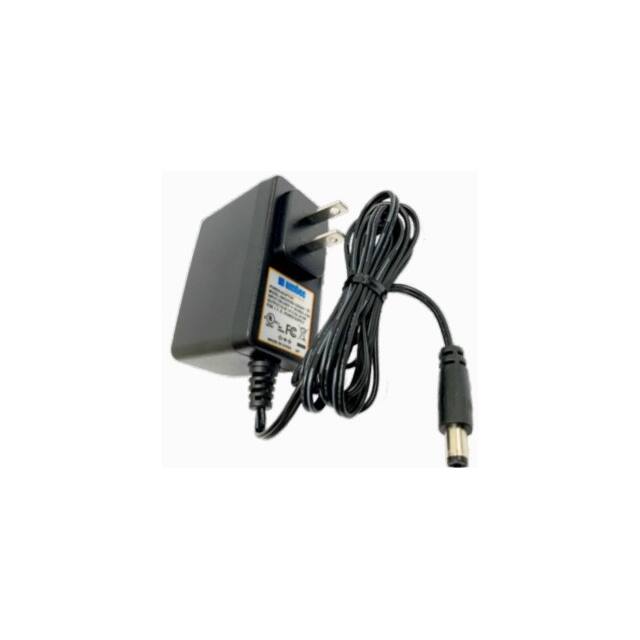

AMA40EU2-120033Y The Aimtec AMA40EU2-120033Y is a 40W AC/DC wall mount adapter providing a 12V output. It features a universal 90-264VAC input and meets DoE Level VI efficiency standards.
Mfr Part #:

AMA40EU2-120033Y

Mfr Name: Aimtec
Aimtec
The Aimtec AMA40EU2-120033Y is a 40W AC/DC wall mount adapter providing a 12V output. It features a universal 90-264VAC input and meets DoE Level VI efficiency standards.
Stock on Request

AMA40EU2-120033Y Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Cord Length
Current
Efficiency
Form
Height
Industrial Grade
Input Connector
Input Type
Input Voltage
Lead Style
Length
Mounting Type
No Load Power Consumption
Operating Temperature
Output Connector
Power (Watts)
Region Utilized
Standard Number
Voltage
Width

AMA40EU2-120033Y Description

Short technical summary and product information.

The Aimtec AMA40EU2-120033Y is an industrial-grade AC/DC wall mount adapter designed for powering various systems. It offers a universal input voltage range of 90-264VAC and a regulated 12V output with a maximum current of 3.34A, delivering up to 40W of power.



This adapter complies with DoE Level VI efficiency standards, ensuring low power consumption. It features high isolation voltage (4242VDC) for enhanced reliability and system safety. Protection features include output short circuit protection (OSCP), output over-current protection (OCP), and over-voltage protection (OVP).



The unit operates within a temperature range of 0°C to +40°C and has a low ripple and noise specification of 120mVp-p maximum. Its compact dimensions are 82.0mm x 34.5mm x 70.6mm, making it suitable for space-constrained applications. The adapter includes a 1.50m cord length and a USB Type C receptacle output connector.



Compliance includes IEC60950-1 and FCC Class B, CISPR22 Class B. It is suitable for ITE (Commercial) applications and is approved by cULus.

AMA40EU2-120033Y Quick Information

Product Type: AC DC Desktop, Wall Adapters
Series: AMA40-Y
Canonical Name: Aimtec AMA40-Y Series AC Adapter
Subcategory: Wall Mount Adapter

AMA40EU2-120033Y Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AMA40EU2-120033Y Features

  • Universal 90-264VAC input voltage range.
  • Provides 12V DC output at 40W maximum.
  • Meets DoE Level VI efficiency standards.
  • Features 4242VDC high isolation voltage.
  • Includes output short circuit protection.

AMA40EU2-120033Y Applications

  • Ideal for powering 12V DC devices.
  • Used in IT equipment and peripherals.
  • Suitable for home appliances and controls.
  • Works in industrial automation systems.

AMA40EU2-120033Y FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the AMA40EU2-120033Y?

The input voltage range is 90 to 264 VAC.

What is the output voltage and current?

The output is 12 VDC at up to 3.34 A, providing 40 W maximum power.

What is the operating temperature range?

The operating temperature range is 0°C to 40°C.

What is the efficiency of this adapter?

The typical efficiency is 87%, complying with DoE Level VI.

What are the physical dimensions of the adapter?

The dimensions are 82.0 mm (3.23") length, 34.5 mm (1.36") width, and 70.6 mm (2.78") height.

What is the cord length?

The output cord length is 1.50 m (59 inches).

What is the isolation voltage rating?

The input-to-output isolation is rated at 4242 VDC (3000 VAC).
