| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Frequency | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Tape & Reel | |
| Voltage | |
| Width |

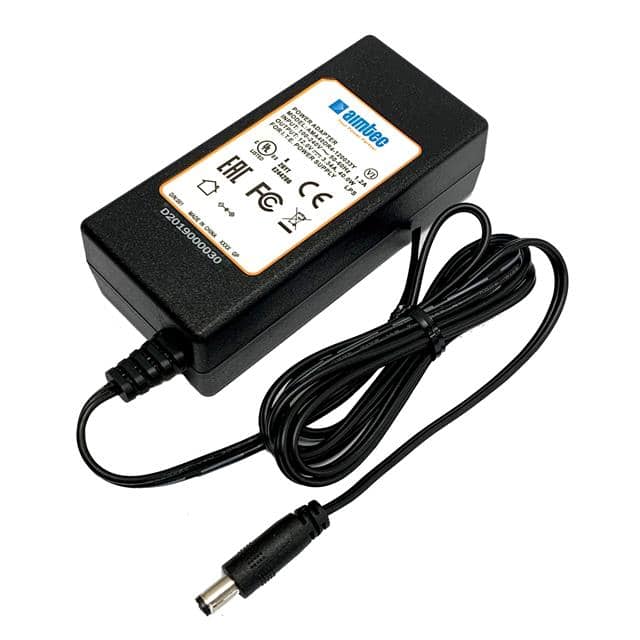

The Aimtec AMA40DR5-120033Y is a compact industrial-grade desktop AC/DC adapter designed for ITE (Commercial) applications. It offers a universal input voltage range of 90-264VAC and a regulated 12V output with a maximum current of 3.34A, delivering up to 40W of power.
This adapter boasts high efficiency, complying with DoE Level VI standards, and features a high isolation voltage of 3000VAC for enhanced reliability and safety. It includes essential protections such as output short circuit, over-current, and over-voltage protection. The unit operates within a temperature range of 0°C to +40°C and has a low no-load power consumption of 75mW maximum.
Designed with a C14 input connector and a 2.5mm I.D. x 5.5mm O.D. x 9.5mm barrel plug output, the AMA40DR5-120033Y has physical dimensions of 111.0mm x 52.0mm x 32.0mm. It is compliant with IEC60950-1 and IEC62368-1 standards, with CE and UL approvals.
90-264 VAC, 47-63 Hz.
0°C to 40°C.
12 VDC at 3.34 A max, 40 W.
UL and CE certified, per 60950-1 and 62368-1.
111.0 mm x 52.0 mm x 32.0 mm (4.37" x 2.05" x 1.26").
IEC 320-C14 (power cord sold separately).
Barrel plug, 2.5 mm ID x 5.5 mm OD x 9.5 mm length, positive center polarity.
