| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage | |
| Width |

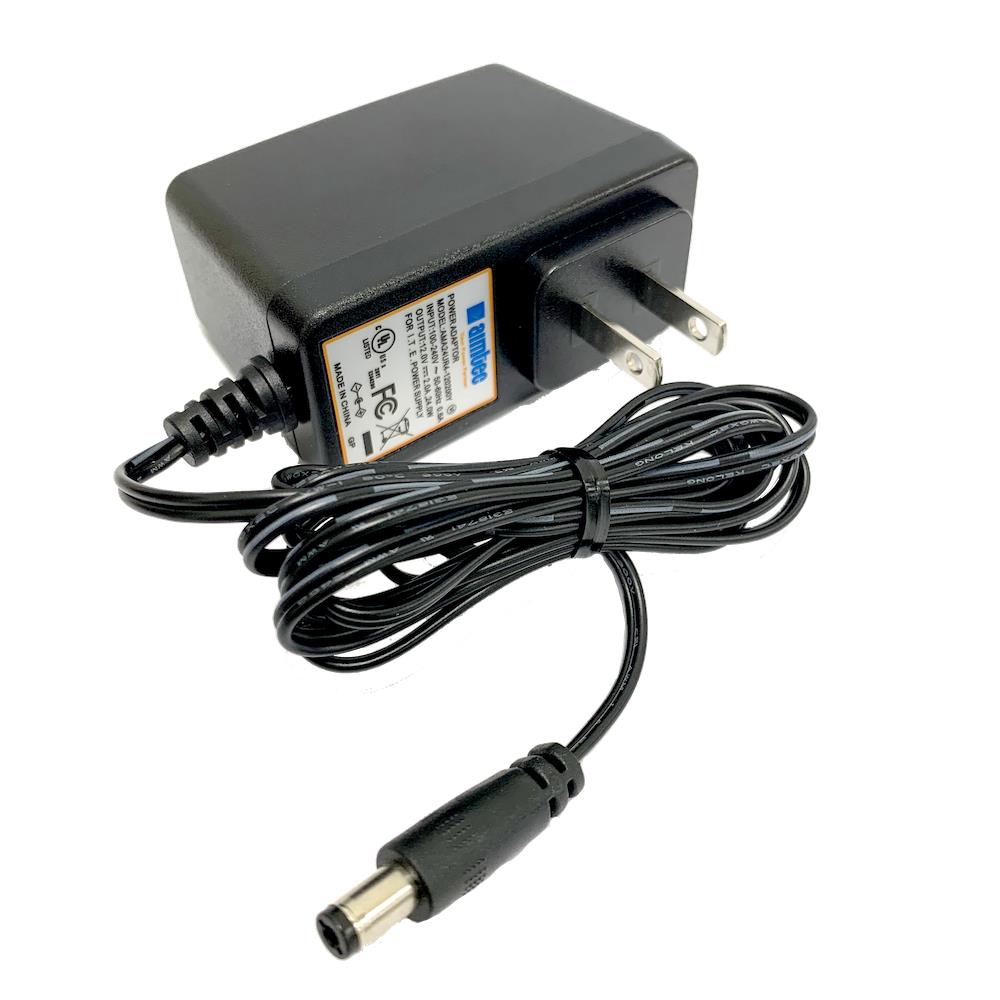

This Aimtec AMA24UR4-120150Y is an AC/DC wall mount adapter with a power output of 18 watts and a voltage of 12V. It meets Efficiency Level VI standards, ensuring optimal energy usage.
The adapter is designed for ITE (Commercial) applications and operates within a temperature range of 0°C to 40°C. Its input voltage range is 90 to 264 VAC, making it suitable for various regions, specifically North America with its fixed blade input connector.
Key specifications include a maximum output current of 1.5A and a low no-load power consumption of 100mW (Max). The output connector is a standard Barrel Plug (2.1mm I.D. x 5.5mm O.D. x 9.5mm), and the unit features Positive Center polarization. The dimensions are 72.0mm x 34.0mm x 73.0mm, and it has a cord length of 1.50m.
Compliance is indicated by RoHS3 compliance and adherence to safety standards like IEC 60950-1 and IEC 62368-1. Approval agencies include CE and UL, confirming its suitability for commercial use.
12V DC.
Wall mount (Class II) with dimensions 72.0mm x 34.0mm x 73.0mm.
0°C to 40°C.
18W.
1.5A.
Level VI.
90 to 264 VAC.
