| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

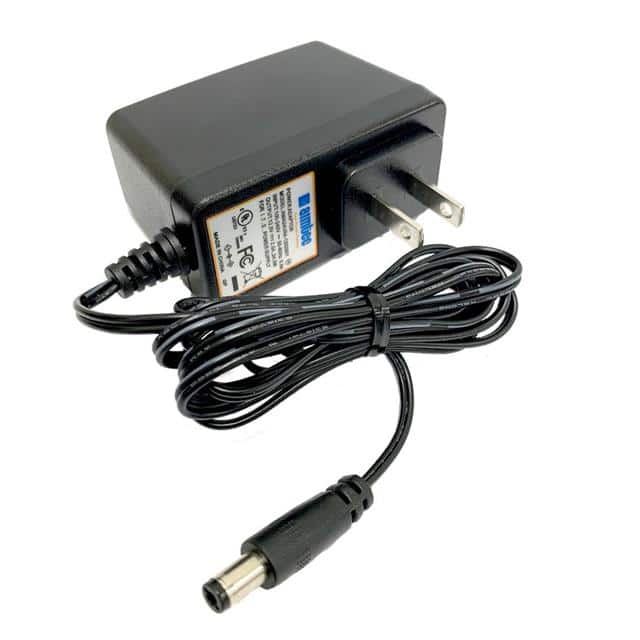

This Aimtec AMA24UR3-050300Y is an AC/DC wall mount adapter designed for commercial ITE applications. It delivers a stable 5V output with a maximum current of 3A, providing a total power of 15W. The adapter complies with Level VI efficiency standards, ensuring energy savings.
Featuring a NEMA 1-15P input connector and a fixed blade input type, it is suitable for North American regions. The output is delivered via a standard barrel plug with specific dimensions (1.35mm I.D. x 3.8mm O.D. x 9.5mm) and positive center polarization. The cord length is 1.50 meters (60.2 inches).
The adapter operates within a temperature range of 0°C to 40°C and has a no-load power consumption of 100mW maximum. Its dimensions are 72.0mm x 34.0mm x 73.0mm. It adheres to safety standards 60950-1 and 62368-1, with CE and UL approval agencies.
This wall mount adapter is classified as Class II and is designed for reliable power delivery in various commercial environments.
The Aimtec AMA24UR3-050300Y adapter provides a 5V output voltage and a maximum current of 3A.
The Aimtec AMA24UR3-050300Y adapter has a power rating of 15W.
The Aimtec AMA24UR3-050300Y adapter meets Level VI efficiency standards.
The Aimtec AMA24UR3-050300Y adapter operates within a temperature range of 0°C to 40°C.
The Aimtec AMA24UR3-050300Y adapter uses a NEMA 1-15P input connector.
The dimensions of the Aimtec AMA24UR3-050300Y adapter are 72.0mm x 34.0mm x 73.0mm.
The Aimtec AMA24UR3-050300Y adapter complies with standards 60950-1 and 62368-1.
