| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

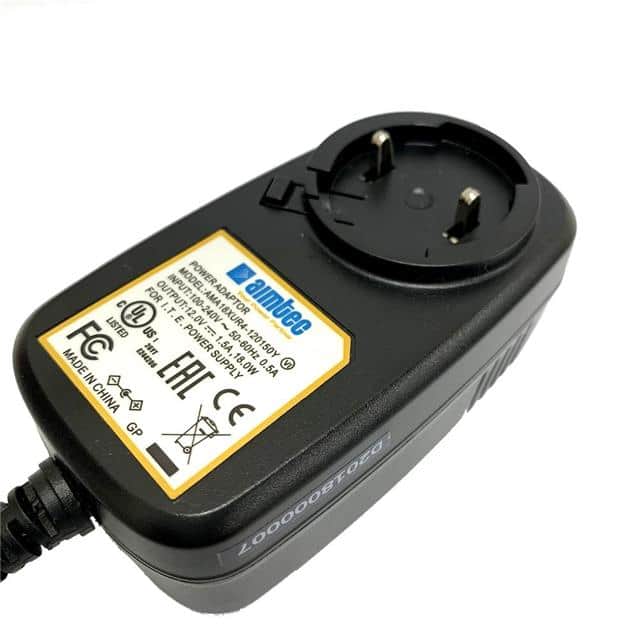

The Aimtec AMA18XAR5-120150Y is a compact AC/DC wall mount adapter designed for ITE commercial applications. It offers a universal input voltage range of 90-264VAC and a stable 12VDC output at up to 1.5A, delivering a total of 18W of power.
This adapter boasts high efficiency of 85% and meets ErP Tier 2 2016 standards, contributing to low power consumption. Key electrical features include a low ripple and noise level of 200mVp-p maximum and an isolation voltage of 3000VAC for enhanced reliability and safety. It also incorporates essential protection features such as output short circuit protection (OSCP) and output over-current protection (OCP).
The unit operates within a temperature range of 0°C to +40°C and has dimensions of 90.3mm x 50.0mm x 37.9mm. It features a standard barrel plug output connector (2.5mm I.D. x 5.5mm O.D. x 9.5mm) and a multi-blade input connector, with a cord length of 1.50m. The adapter is designed as a Class II, Wall Mount type.
90-264 VAC.
12 VDC at 1.5 A.
0°C to 40°C.
85%.
75 mW maximum.
3000 VAC.
200 mVp-p maximum.
