| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Frequency | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

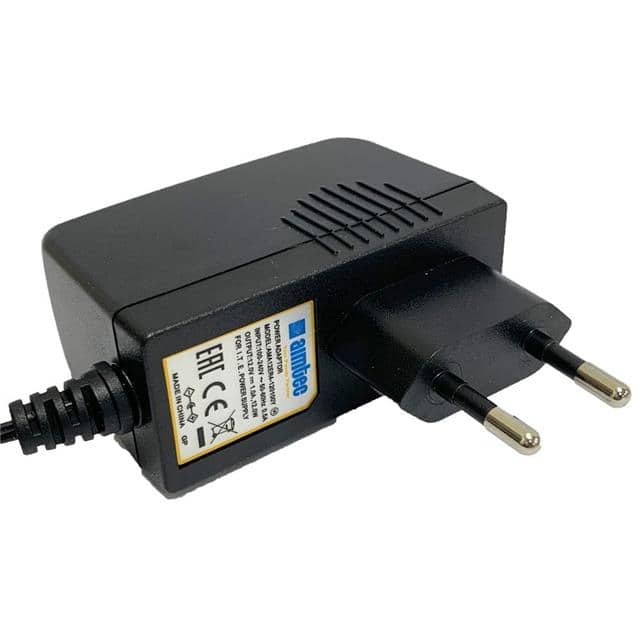

The Aimtec AMA12UR2-120100Y is an industrial-grade AC/DC wall mount adapter designed for powering various systems. It offers a universal input voltage range of 90-264VAC and a regulated 12VDC output with a maximum current of 1A, delivering up to 12W of power.
This adapter boasts high efficiency, complying with DoE Level VI standards, and features low power consumption. For enhanced reliability and system safety, it provides an isolation voltage of 3000VAC. It also includes essential protections such as output short circuit protection (OSCP) and output over-current protection (OCP).
The unit operates within a temperature range of 0°C to +40°C and has a compact form factor with dimensions of 70.0mm x 31.0mm x 67.3mm. The input connector is a NEMA 1-15P, and the output connector is a Barrel Plug with a 3.8mm O.D. and 1.05mm I.D. The cord length is approximately 1.50 meters.
Compliance includes meeting IEC/EN/UL 62368-1, FCC Class B, and CISPR22 Class B standards, making it suitable for ITE (Commercial) applications in North America.
90-264 VAC.
12V DC at 1A, up to 12W.
83% typical, complying with DoE Level VI.
75mW maximum.
0°C to 40°C.
3000 VAC.
200mV(p-p) maximum at 20 MHz bandwidth.
