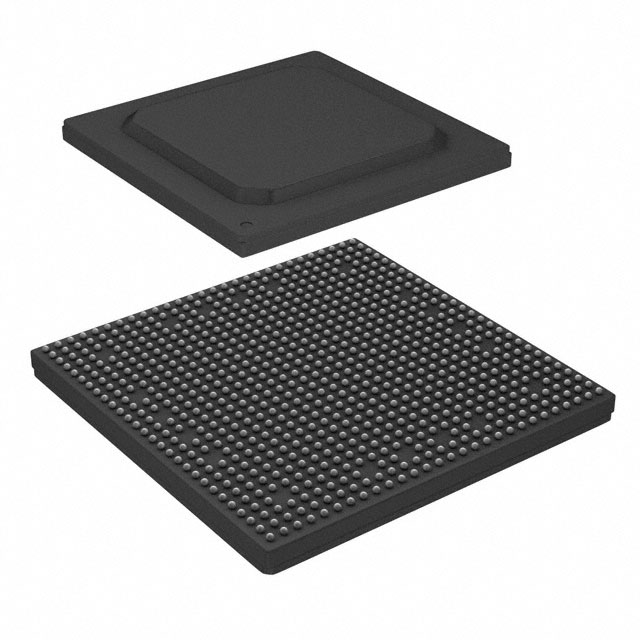

AM5728BABCXA The Texas Instruments AM5728BABCXA Sitara processor is a high-performance heterogeneous SoC integrating dual ARM Cortex-A15 cores, dual C66x DSPs, and a PowerVR SGX544 GPU. It operates at 1.5 GHz and supports a wide range of interfaces including Gigabit Ethernet, USB 3.0, and SATA.
Mfr Part #:

AM5728BABCXA

Available from 3 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments AM5728BABCXA Sitara processor is a high-performance heterogeneous SoC integrating dual ARM Cortex-A15 cores, dual C66x DSPs, and a PowerVR SGX544 GPU. It operates at 1.5 GHz and supports a wide range of interfaces including Gigabit Ethernet, USB 3.0, and SATA.
✓ Total Stock: 5,358 pcs
$ Price Range: $67.28

AM5728BABCXA Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
4,737 pcs
On Request
4737 pcs On Request 1 On Request On Request On Request On Request On Request
Romaks Technologies ✓
Non-Authorised Inventory information
603 pcs
On Request
603 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
18 pcs
On Request
18 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AM5728BABCXA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Co
Core Processor
Ethernet
Frequency
Graphics Acceleration
Mounting Type
Number of Cores
Operating Temperature
RAM Controllers
SATA
SVHC Present
Speed
Supplier Device Package
USB
Voltage
View Similar Products (0)

AM5728BABCXA Description

Short technical summary and product information.

The Texas Instruments AM5728BABCXA is a Sitara series microprocessor based on the ARM Cortex-A15 architecture. It integrates two Cortex-A15 cores operating at 1.5 GHz, along with two C66x digital signal processors, two Cortex-M4 coprocessors, and a PowerVR SGX544 dual-core 3D GPU. This heterogeneous architecture enables efficient handling of both general-purpose computing and signal processing tasks.



The processor includes 2.5 MB of on-chip L3 RAM and supports DDR3 and DDR3L memory via two EMIF interfaces. Connectivity options include dual-port Gigabit Ethernet, USB 2.0 and 3.0, SATA 3 Gbps, PCIe Gen2, and multiple serial interfaces (UART, I2C, SPI). It also features a display subsystem with HDMI 1.4a and three LCD pipelines, and a video codec capable of H.264 4K encode/decode at 15 fps.



The AM5728BABCXA includes hardware crypto accelerators (AES, SHA, RNG, DES, 3DES), programmable real-time units (PRU-ICSS) for industrial communication, and support for various operating systems including Android, Linux, and RTOS. It is available in a 760-ball FCBGA package measuring 23 mm x 23 mm, suitable for surface mount assembly. The device operates over a temperature range of -40°C to 105°C and requires supply voltages of 1.8V and 3.3V.

AM5728BABCXA Quick Information

Product Type: Microprocessor
Series: Sitara
Canonical Name: Texas Instruments AM5728BABCXA Sitara ARM Cortex-A15 Microprocessor
Subcategory: Multimedia SoC

AM5728BABCXA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AM5728BABCXA Estimated Pricing

Qty Low High
1+ $67.28 $67.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

AM5728BABCXA Features

  • Dual ARM Cortex-A15 cores at 1.5 GHz.
  • Integrated dual C66x floating-point DSP.
  • PowerVR SGX544 dual-core 3D GPU.
  • Supports DDR3/DDR3L memory interfaces.
  • Wide operating temperature range -40 to 105°C.

AM5728BABCXA Applications

  • Industrial automation and control systems.
  • Multimedia and video processing applications.
  • Automotive infotainment and driver assistance.
  • Networking and communication gateways.

AM5728BABCXA FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range of the AM5728BABCXA?

The operating temperature range is -40°C to 105°C.

What is the package type and dimensions?

The package is FCBGA-760 measuring 23 mm x 23 mm, surface mount.

What is the supply voltage requirement?

The device requires supply voltages of 1.8V and 3.3V.

Is the AM5728BABCXA RoHS compliant?

The component is listed as RoHS3 Compliant, but this is unverified with low confidence.

What is the core architecture?

The processor uses a dual ARM Cortex-A15 core architecture.

What is the clock frequency?

The maximum frequency is 1.5 GHz.

What memory types are supported?

DDR3, DDR3L, and SRAM memory are supported via two EMIF modules.
