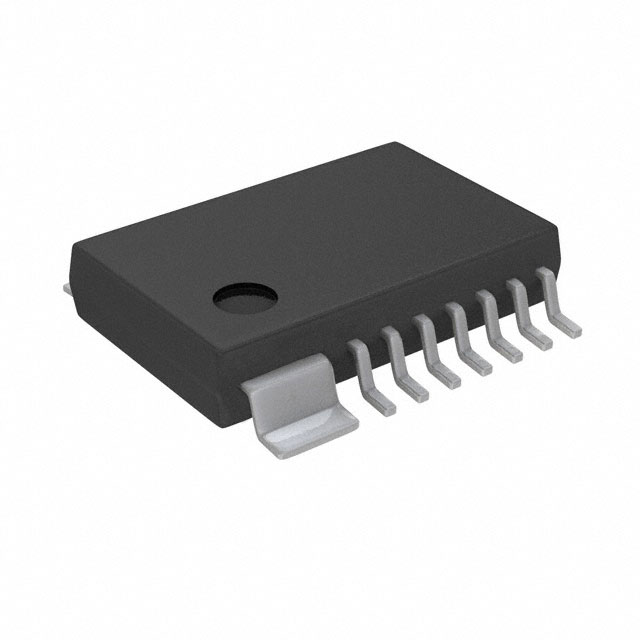

The AM4962GHTR-G1 from Diodes Incorporated is a single-phase, full-wave direct PWM motor driver IC designed for brushless DC motors. It offers integrated control and power stage functionality, enabling speed control via PWM pulse directly. The device operates within a voltage range of 3.5V to 16V and can handle up to 1A of output current.
Key features include built-in circuits for triangle wave generation, Hall bias, and minimal speed setup, eliminating the need for external oscillation capacitors. It also provides adjustable slope K for output PWM duty versus input PWM duty, rotation speed indication (FG), and rotation or lock state indication (RD). For protection, it incorporates thermal shutdown, lock protection, and auto-restart capabilities.
The AM4962GHTR-G1 is available in a 14-HTSSOP package, suitable for surface mount applications. Its operating temperature range is -30°C to 90°C (TA). This driver is well-suited for applications such as CPU cooler fans in PCs and general brushless DC motor driving.
This IC is designed for ease of integration, featuring direct PWM control and essential built-in protection mechanisms. The adjustable slope K and minimal speed setup allow for customization in motor control profiles.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.25 | $2.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 3.5V to 16V.
The operating temperature range is -30°C to 90°C.
The device is available in 14-HTSSOP and 14-TSSOP (0.173", 4.40mm Width) + 2 Heat Tabs packages.
The output current limit is 1A.
It uses a PWM interface for control.
It supports brushless DC (BLDC) motors.
Built-in thermal shutdown circuit and lock protection with auto-restart.
