| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,030 pcs
|
4030 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,260 pcs
|
2260 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
24 pcs
|
24 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | 2133 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Co | |
| Core Processor | |
| Display & Interface Controllers | |
| Ethernet | |
| Graphics Acceleration | |
| Mounting Type | |
| Number of Cores | |
| Operating Temperature | |
| RAM Controllers | |
| Security Features | |
| Speed | |
| Supplier Device Package | |
| USB | |
| Voltage |

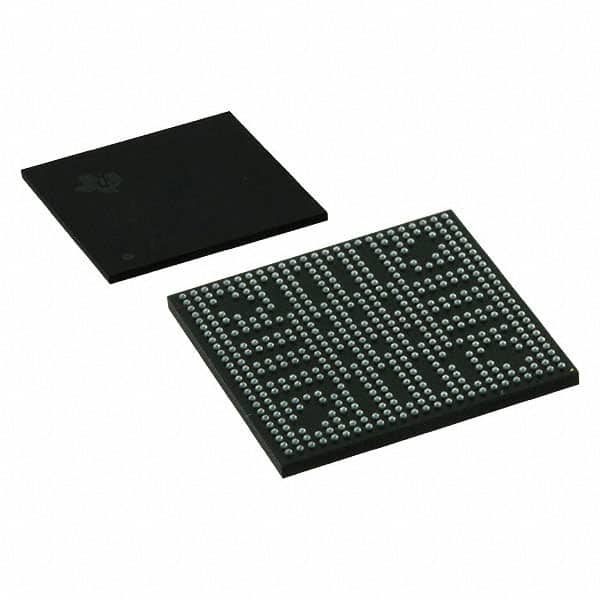

The AM4376BZDND100 is a high-performance ARM Cortex-A9 32-bit RISC microprocessor from Texas Instruments' Sitara family. It operates at a maximum clock frequency of 1.0GHz and integrates a NEON SIMD coprocessor and Vector Floating Point (VFPv3) coprocessor for multimedia acceleration. The processor includes 32KB L1 instruction and data caches, 256KB of L2 cache or L3 RAM, and 256KB of on-chip boot ROM.
Memory support includes 32-bit LPDDR2, DDR3, and DDR3L interfaces, general-purpose memory (NAND, NOR, SRAM) with up to 16-bit ECC, and a programmable real-time unit and industrial communication subsystem (PRU-ICSS). For connectivity, it features two USB 2.0 high-speed dual-role ports with integrated PHY, a dual-port 10/100/1000 Ethernet switch, and multiple serial interfaces including CAN, UART, McASP, SPI, I2C, QSPI, and 1-Wire.
The device is housed in a 491-LFBGA (low-profile fine-pitch ball grid array) package with a 17x17mm body (also referred to as 491-NFBGA). It supports surface mount assembly and is rated for an operating temperature range of -40°C to 90°C (junction). Security features include cryptographic hardware accelerators (AES, SHA, RNG, DES, 3DES) and secure boot on high-security variants.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.45 | $10.45 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The device supports 1.8V and 3.3V supply voltages.
It is available in a 491-LFBGA (low-profile fine-pitch ball grid array) package with a 17x17mm body, also referred to as 491-NFBGA.
The operating temperature range is -40°C to 90°C (junction temperature).
It is listed as RoHS3 Compliant, but this status is unverified. Confirm with the manufacturer.
The core processor is an ARM Cortex-A9 32-bit RISC CPU.
It supports LPDDR2, DDR3, and DDR3L memory.
Yes, it includes a cryptographic hardware accelerator (AES, SHA, RNG, DES, 3DES) and secure boot (on HS devices).
