AM3358BZCZA80

The AM3358BZCZA80 is a high-performance microprocessor from Texas Instruments' Sitara family, built around a single ARM Cortex-A8 core operating at 800MHz. It includes a NEON SIMD coprocessor for multimedia acceleration and a 3D graphics accelerator, making it suitable for industrial and embedded applications requiring rich user interfaces.

Key specifications include 32KB of L1 instruction and data cache with parity, 256KB of L2 cache with ECC, 176KB of boot ROM, and 64KB of dedicated on-chip RAM. The processor supports multiple memory types including LPDDR, DDR2, DDR3, and DDR3L with clock speeds up to 400MHz (800MHz data rate). It also features dual USB 2.0 with PHY, dual Gigabit Ethernet, and LCD/touchscreen display controllers.

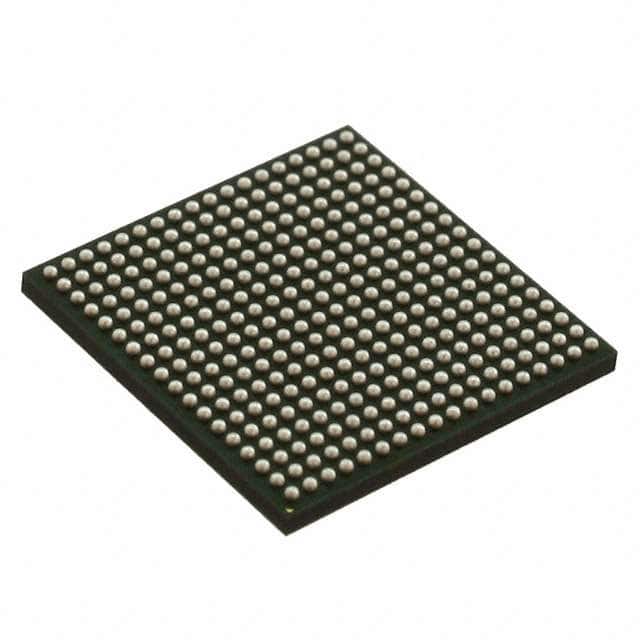

The device is housed in a 324-ball NFBGA package (15x15mm) and operates over a wide temperature range of -40°C to 105°C. It includes security features such as cryptographic acceleration and a random number generator, as well as a programmable real-time unit subsystem (PRU-ICSS) for industrial communication protocols like EtherCAT, PROFIBUS, and PROFINET.
