| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
178 pcs
|
178 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Architecture | |
| Automotive Grade | |
| Failure Rate | |
| Industrial Grade | |
| Medical Grade | |
| Memory Size | |
| Memory Type | |
| Military Grade | |
| Mounting Style | |
| Operating Temperature | |
| Speed | |
| Storage Temperature | |
| Supply Current |

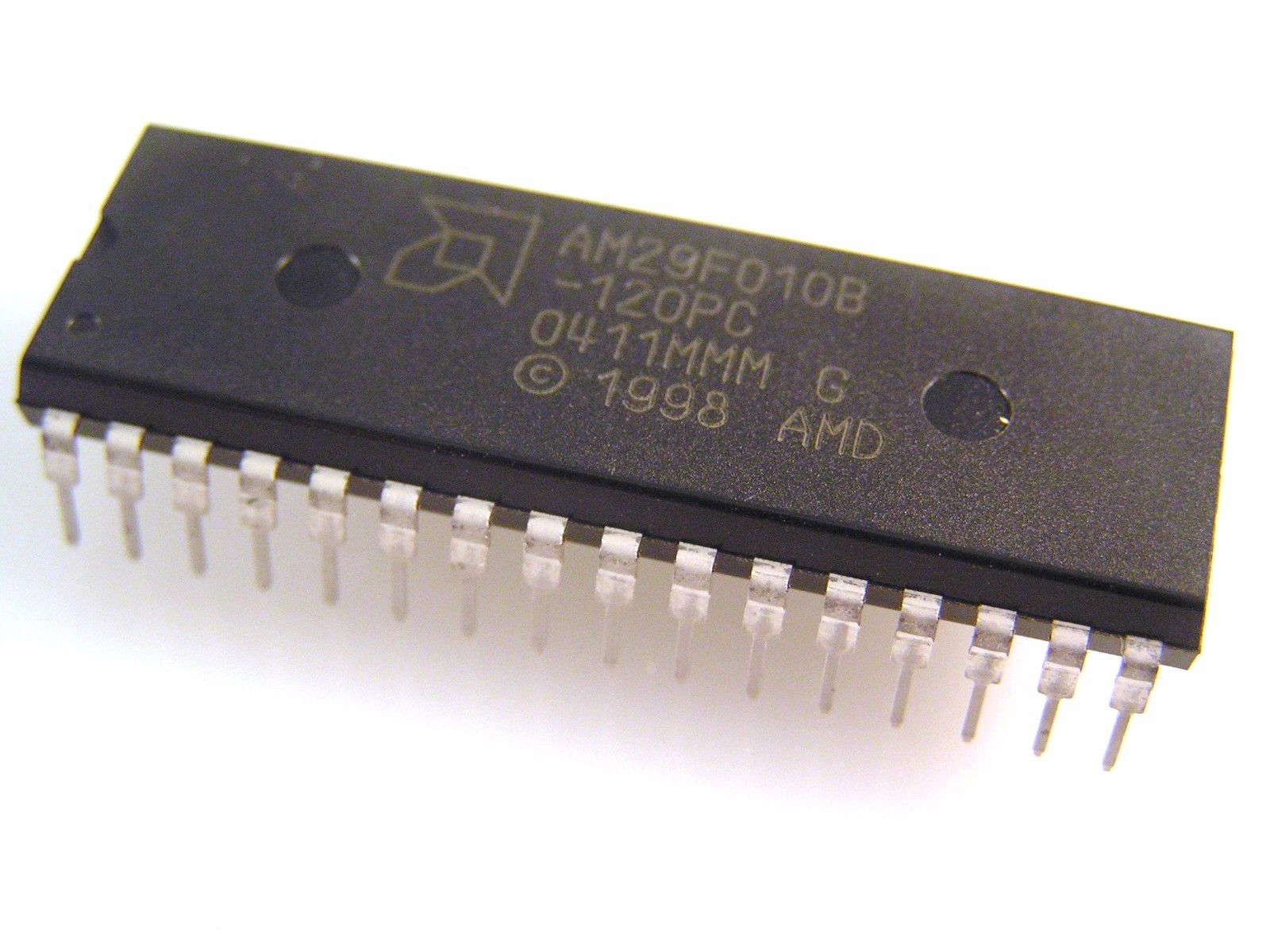

This AMD AM29F010B-120PC is a 1Mbit Flash Memory IC from the Am29F010 series. It utilizes a Parallel NOR interface and operates asynchronously with a data bus width of 8 bits.
The device supports a memory organisation of 128K x 8 and requires a supply voltage between 4.5V and 5.5V, with a maximum supply current of 30mA. The operating temperature range is from 0 C to +70 C.
Packaged in a PDIP-32 through-hole configuration, this flash memory IC is suitable for applications requiring non-volatile program storage that is infrequently changed. It has a limited life in terms of write cycles.
The RoHS status is listed as RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1 Unlimited. REACH status is unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.28 | $1.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The memory size is 1 Mbit.
It uses a Parallel interface.
The speed is 120 ns.
The minimum supply voltage is 4.5 V.
The maximum supply voltage is 5.5 V.
The operating temperature range is 0 C to +70 C.
It is in a PDIP-32 package.
