| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name |

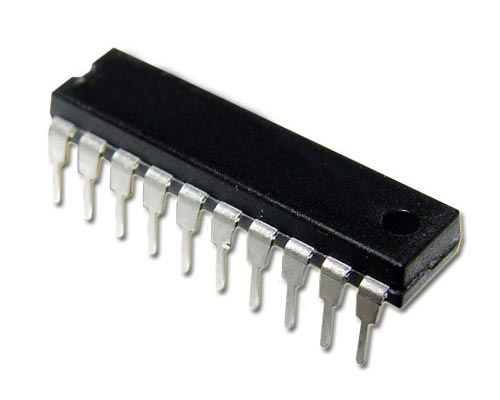

The AM2947DM-B from Advanced Micro Devices is an octal inverter buffer featuring 3-state capabilities. This component is designed for digital logic applications requiring signal inversion and buffering.
It is housed in a 20-pin DIP (Dual In-line Package) for through-hole mounting. The device functions as an octal buffer, meaning it can handle eight channels of input signals simultaneously. The 3-state output allows the buffer to be placed in a high-impedance state, effectively disconnecting it from the bus when not in use.
This component is described as RoHS3 Compliant and has a Moisture Sensitivity Level (MSL) of 1, indicating unlimited shelf life under recommended storage conditions. The REACH status is noted as unaffected. The part is also identified as an Octal 3 State Bidirectional/Bus Transceiver.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.76 | $1.76 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AM2947DM-B is an Octal Inverter Buffer with 3-state.
The AM2947DM-B uses a 20 pin DIP package.
The AM2947DM-B is RoHS3 Compliant.
The MSL for the AM2947DM-B is 1 Unlimited.
The REACH status for the AM2947DM-B is REACH Unaffected.
The AM2947DM-B is supplied TUBED and has 1 item per pack.
