| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
24,940 pcs
|
24940 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Isolation Voltage | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| Storage Temperature | |
| Supplier Device Package | |
| Type | |
| Voltage | |
| Width | |
| input_voltage (Minimum/Nominal/Maximum) |

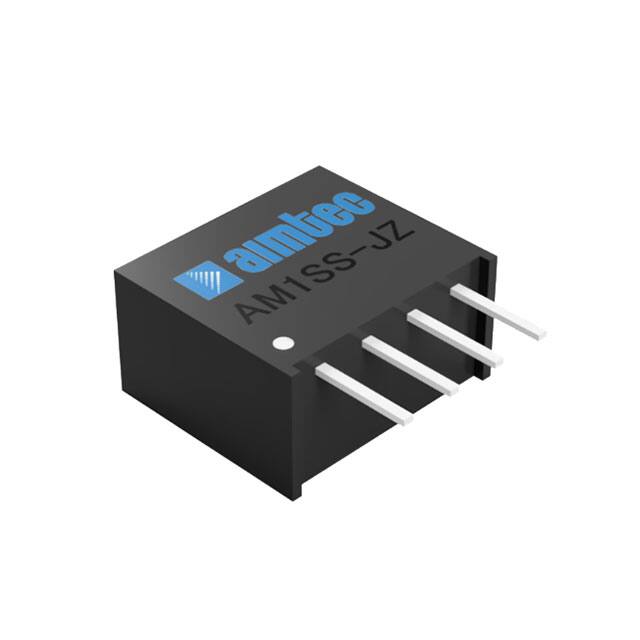

The Aimtec AM1SS-0505SJZ is a 1W isolated DC-DC converter module designed for commercial ITE applications. It accepts an input voltage range of 4.5V to 5.5V and provides a regulated 5V output at up to 200mA. With an efficiency of 82%, it minimizes power loss in space-constrained designs.
The converter features 1500VDC input-to-output isolation, ensuring reliable operation in noisy environments. It is housed in a compact 4-SIP module with through-hole mounting, measuring 11.6mm x 6.0mm x 10.2mm. The operating temperature range is -40°C to 105°C with derating, and the device is cURus approved.
Typical applications include control systems, industrial equipment, and telecommunications devices where isolated power conversion is required. The module is RoHS3 compliant and REACH unaffected, though these compliance statuses have not been independently verified.
The input voltage range is 4.5V to 5.5V, with a nominal 5V input.
The output voltage is 5V and the output current is 200mA.
The isolation voltage is 1500VDC.
The operating temperature range is -40°C to 105°C with derating.
The package is a 4-SIP module with through-hole mounting.
The device is listed as RoHS3 Compliant, but this has not been independently verified.
The efficiency is 82%.
