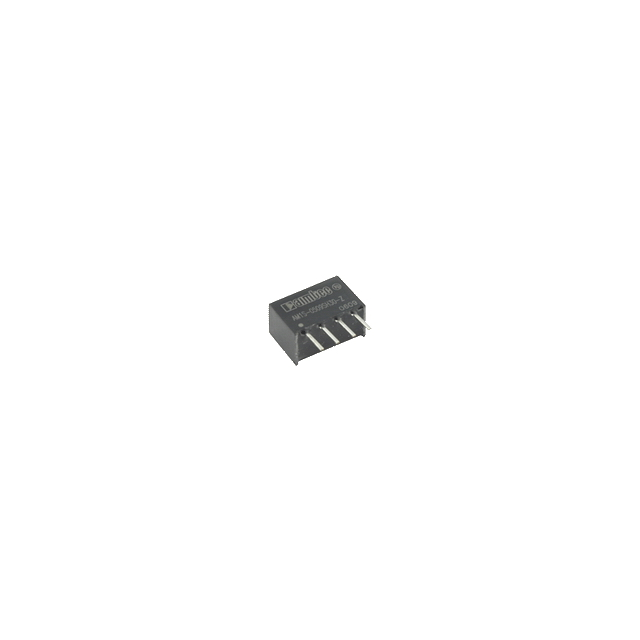

The Aimtec AM1S-2412SH30Z is a 1W isolated DC-DC converter designed for commercial and industrial applications. It accepts an input voltage range of 21.6V to 26.4V and provides a regulated 12V output at 100mA. The converter achieves 80% typical efficiency and offers 3000VDC input-to-output isolation, suitable for systems requiring galvanic isolation.
Key electrical characteristics include a maximum capacitive load of 220µF, typical full-load input current of 62mA, and no-load current of 8mA. The device operates over a wide temperature range of -40°C to 85°C, making it suitable for harsh environments.
The AM1S-2412SH30Z is housed in a 4-SIP (Single In-line Package) with through-hole mounting. Its compact dimensions of 11.7mm x 6.0mm x 9.7mm enable space-efficient integration on PCBs. The module is designed for ITE (Information Technology Equipment) commercial applications and is CE approved.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.69 | $3.69 |
| 5+ | $3.56 | $3.56 |
| 10+ | $3.50 | $3.50 |
| 20+ | $3.44 | $3.44 |
| 40+ | $3.38 | $3.38 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 21.6V to 26.4V DC.
It provides a regulated 12V output with a maximum current of 100mA.
The isolation voltage is 3000VDC.
It is housed in a 4-SIP (Single In-line Package) with through-hole mounting.
The operating temperature range is -40°C to 85°C.
Yes, it is RoHS3 compliant (unverified status).
The typical efficiency is 80%.
