| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
38,653 pcs
|
38653 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Current - Output (Max) | |
| Efficiency | |
| Halogen Free | |
| Height | |
| Input Current (Full Load) | |
| Input Current (No Load) | |
| Length | |
| Max Capacitive Load | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| Power (Watts) | |
| SVHC Present | |
| Size / Dimension | |
| Type | |
| Voltage | |
| Voltage - Input (Max) | |
| Voltage - Input (Min) | |
| Voltage - Isolation | |
| Voltage - Output 1 | |
| Width |

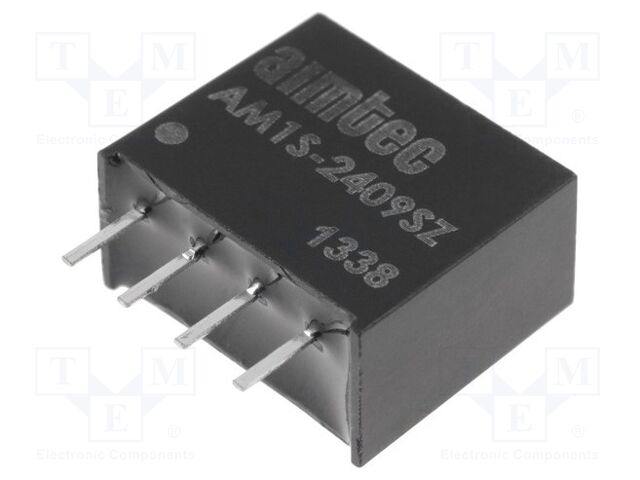

The Aimtec AM1S-2409SZ is a 1-watt isolated DC-DC converter designed for commercial applications. It provides a regulated 9V output from a nominal 24V input (21.6-26.4V range), delivering up to 111.1mA of current. With an efficiency of 77%, this module minimizes power loss and heat generation.
Isolation is rated at 1000VDC, ensuring safety and noise separation between input and output. The converter can drive capacitive loads up to 220µF. It is housed in a 4-SIP (Single In-line Package) with through-hole mounting, measuring just 11.7mm x 6.0mm x 10.2mm, making it suitable for space-constrained designs.
Operating over a temperature range of -40°C to 85°C, the AM1S-2409SZ is ideal for industrial and commercial equipment where reliable power conversion is required. The module is CE approved and designed to meet RoHS requirements.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.99 | $3.99 |
| 5+ | $3.85 | $3.85 |
| 10+ | $3.79 | $3.79 |
| 20+ | $3.72 | $3.72 |
| 40+ | $3.66 | $3.66 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
21.6V to 26.4V
9V at up to 111.1mA
1000VDC
77%
-40°C to 85°C
4-SIP Module through-hole
RoHS3 compliant (unverified)
