| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
38,653 pcs
|
38653 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Input Current (Full Load) | |
| Input Current (No Load) | |
| Input Voltage | |
| Isolation Voltage | |
| Length | |
| Max Capacitive Load | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Package / Case | |
| Power | |
| Power (Watts) | |
| Supplier Device Package | |
| Type | |
| Voltage | |
| Width |

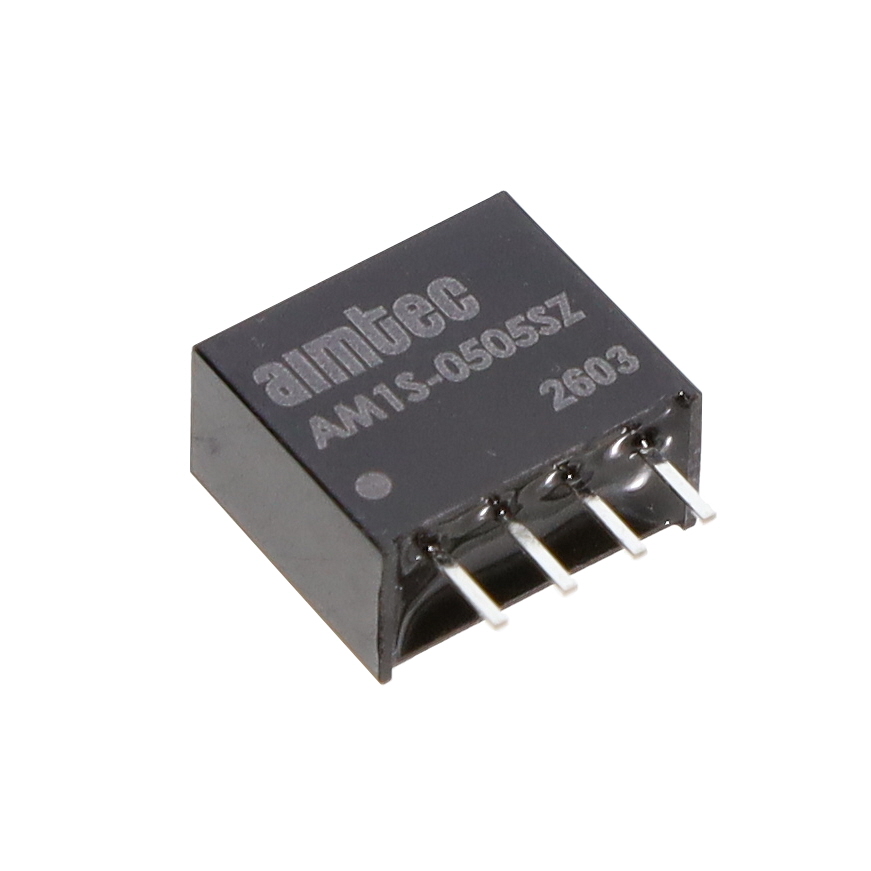

The Aimtec AM1S-0505SZ is an isolated DC DC converter from the AM1S-Z series. It delivers a single 5V output at 200mA with 1W of power. The input voltage range is 4.5V to 5.5V, making it suitable for 5V bus applications. It features 1000VDC input-to-output isolation.
Electrical efficiency is 81% at full load. The no-load input current is 25mA, and full-load input current is 247mA. The maximum capacitive load is 220µF. Operating temperature range is -40°C to 85°C.
The converter is housed in a 4-SIP module with through-hole mounting. Dimensions are 11.7mm x 6.0mm x 9.7mm. It is designed for ITE (commercial) applications and is CE approved. RoHS3 compliant and REACH unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.65 | $3.65 |
| 5+ | $3.52 | $3.52 |
| 10+ | $3.46 | $3.46 |
| 25+ | $3.39 | $3.39 |
| 50+ | $3.33 | $3.33 |
| 100+ | $3.28 | $3.28 |
| 250+ | $3.21 | $3.21 |
| 500+ | $3.15 | $3.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4.5V to 5.5V.
5V at 200mA.
1000VDC.
-40°C to 85°C.
4-SIP Module (through-hole).
RoHS3 Compliant.
81% at full load.
