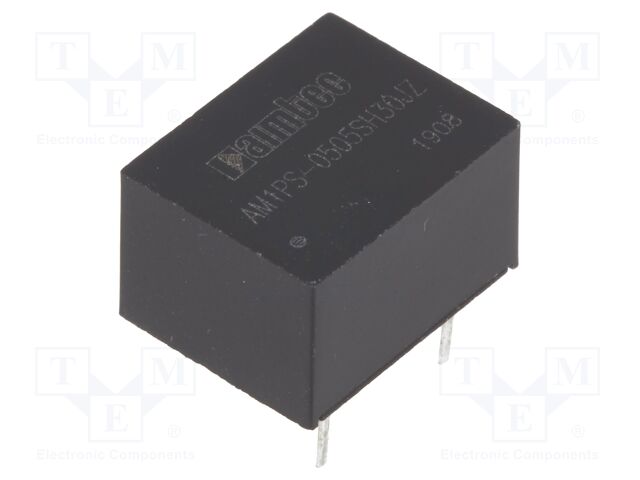

The AM1PS-0505SH30JZ is a 1W isolated DC DC converter from Aimtec, part of the AM1PS-JZ series. It provides a 5V output at up to 200mA from a 4.5V to 5.5V input, with a minimum load of 20mA for regulation. The module delivers 1W of power with 82% typical efficiency and features 3000VDC input-to-output isolation for enhanced system safety. It is designed for commercial ITE (Information Technology Equipment) applications and is cURus approved.
The converter operates over a wide temperature range of -40°C to 105°C, with full power available up to 85°C, and supports a maximum capacitive load of 2400μF. The compact DIP8 package (12.7mm x 10.2mm x 7.7mm) uses through-hole mounting with 4 leads, making it suitable for space-constrained designs. With continuous short circuit protection and high reliability (3.5 million hours MTBF as per the datasheet), this converter is ideal for instrumentation, industrial controls, communication, and IoT applications.
The output voltage is 5V.
The input voltage range is 4.5V to 5.5V.
It provides 3000VDC isolation.
The operating temperature range is -40°C to 105°C.
Yes, it features continuous short circuit protection.
The output is unregulated.
Yes, it is RoHS3 compliant.
