| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
874 pcs
|
874 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Current | |
| Current - Output (Max) | |
| Efficiency | |
| Height | |
| Input Current (No Load) | |
| Isolation Voltage | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Max Capacitive Load | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| Power (Watts) | |
| Storage Temperature | |
| Supplier Device Package | |
| Type | |
| Voltage | |
| Voltage - Input (Max) | |
| Voltage - Input (Min) | |
| Voltage - Output 1 | |
| Width |

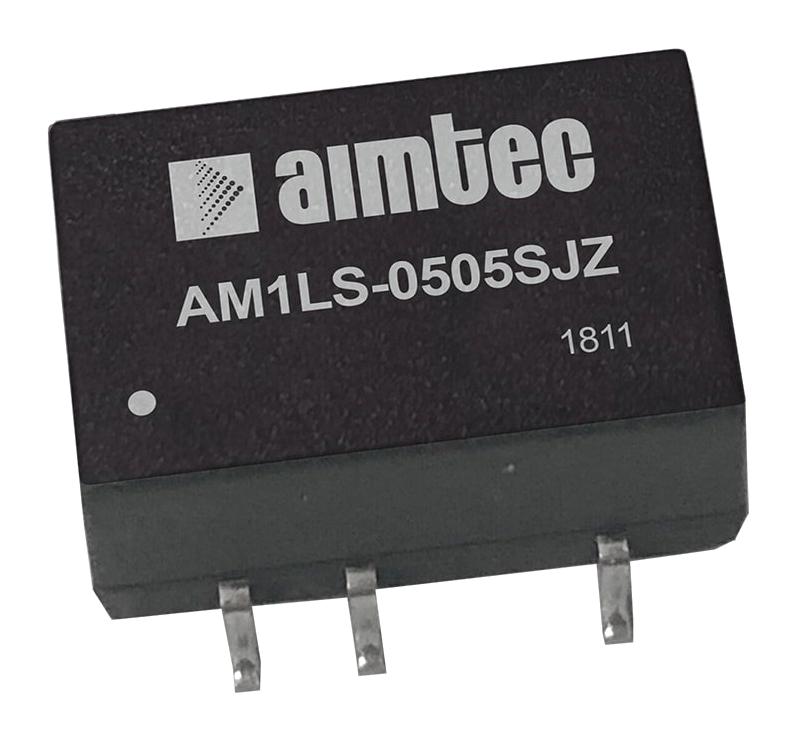

The Aimtec AM1LS-0505SJZ is a 1W isolated DC-DC converter module designed for commercial ITE applications. It accepts a 4.5V to 5.5V input and provides a regulated 5V output at up to 200mA. The converter features 1500VDC input-to-output isolation, ensuring safe operation in noise-sensitive systems.
With a typical efficiency of 82%, the AM1LS-0505SJZ minimizes power loss and heat generation. It supports a maximum capacitive load of 2400µF and has a no-load input current of 10mA. The operating temperature range is -40°C to +105°C with derating, making it suitable for demanding environments.
The module is housed in an 8-SMD package with 5 leads, measuring 13.2mm x 8.5mm x 7.3mm. It is surface-mountable and carries cURus safety approval. The part is RoHS3 compliant and REACH unaffected.
The input voltage range is 4.5V to 5.5V.
It provides a 5V output at up to 200mA.
The isolation voltage is 1500VDC.
The operating temperature range is -40°C to +105°C with derating.
It comes in an 8-SMD Module, 5 Leads surface mount package.
It is listed as RoHS3 Compliant (unverified).
