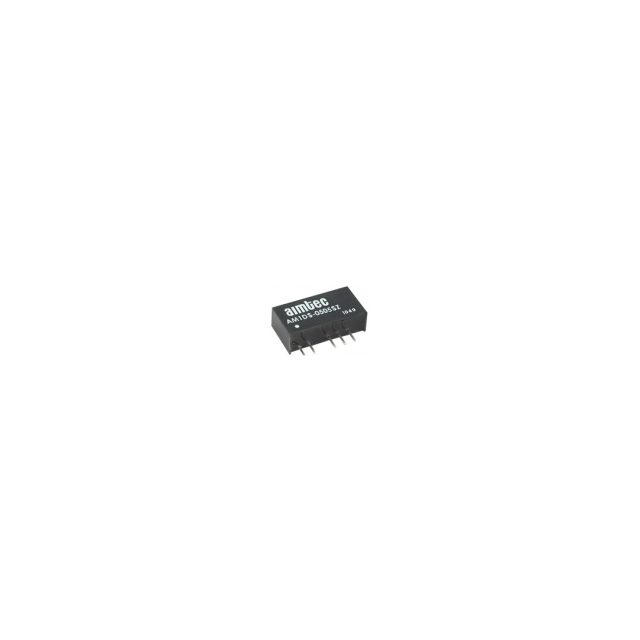

The Aimtec AM1DS-1205SH60Z is a 1W isolated DC-DC converter module belonging to the AM1DS-Z series. It accepts a nominal 12V input (10.8V to 13.2V) and delivers a regulated 5V output at up to 200mA. The converter features a typical efficiency of 74% and provides 6000VDC input-to-output isolation, ensuring safe operation in sensitive applications. It includes continuous short circuit protection and supports a maximum capacitive load of 220µF. The operating temperature range is -40°C to 85°C, making it suitable for commercial ITE (Information Technology Equipment) environments. The module is housed in a 7-pin SIP (Single In-line Package) with a compact footprint of 19.5mm x 6.0mm x 10.0mm and uses through-hole mounting for reliable PCB integration.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.89 | $10.89 |
| 5+ | $10.51 | $10.51 |
| 10+ | $10.32 | $10.32 |
| 20+ | $10.15 | $10.15 |
| 40+ | $9.98 | $9.98 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 10.8V to 13.2V.
The output voltage is 5V.
The maximum output current is 200mA.
The isolation voltage is 6000VDC minimum.
The operating temperature range is -40°C to 85°C.
The package is a 7-SIP Module with through-hole mounting.
The datasheet states RoHS compliance; however, the specific RoHS3 status is unverified.
