| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

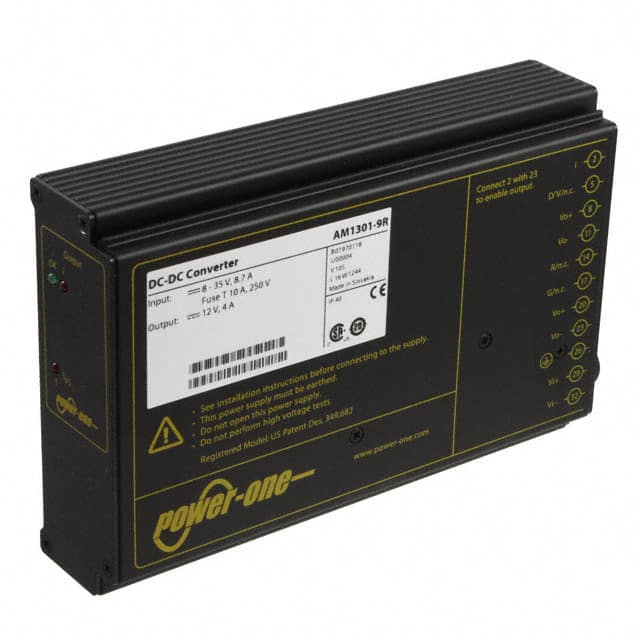

The Bel Power Solutions AM1301-9R is an enclosed, conformal coated DC-DC converter designed for industrial applications. It delivers 50W of power with a single 12V output at 4A. The converter supports a wide input voltage range from 8VDC to 35VDC and operates with an efficiency of 79%.
This unit is designed for chassis mounting and has dimensions of 168.5mm x 111.2mm x 38.7mm. It is suitable for ITE (Commercial) and Railway applications. The operating temperature range is -40°C to 71°C. The converter is approved by cULus and TUV agencies.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AM1301-9R has a single output voltage of 12VDC.
The maximum output current for the AM1301-9R is 4A.
The input voltage range for the AM1301-9R is 8VDC to 35VDC.
The power rating of the AM1301-9R is 50W.
The operating temperature range for the AM1301-9R is -40°C to 71°C.
The AM1301-9R uses chassis mount.
