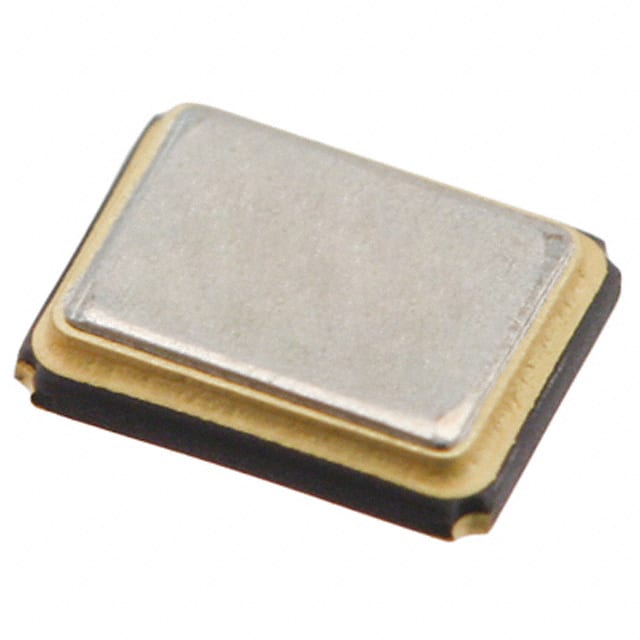

The TXC AM-20.000MAGE-T is a fundamental mode MHz crystal designed for precise frequency generation in electronic circuits. It operates at a nominal frequency of 20 MHz with a frequency tolerance of ±30ppm and a frequency stability of ±50ppm over the full operating temperature range of -40°C to +85°C. The crystal requires a 12pF load capacitance and has a maximum equivalent series resistance (ESR) of 80 Ω.
The device is housed in a compact 4-SMD, no lead package measuring 3.20mm x 2.50mm with a height of 0.80mm, making it suitable for space-constrained surface-mount applications. The crystal is AEC-Q200 qualified, indicating suitability for automotive-grade reliability requirements. The part is listed as RoHS3 compliant and REACH unaffected with an MSL rating of 1 (unlimited), though these compliance claims are unverified.
