| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,504 pcs
|
1504 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
389 pcs
|
389 pcs | On Request | 1 | On Request | On Request | 627 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Current | |
| Coil Insulation | |
| Coil Type | |
| Coil Voltage | |
| Contact Form | |
| Contact Material | |
| Contact Rating (Current) | |
| Mounting Type | |
| Must Operate Voltage | |
| Must Release Voltage | |
| Operate Time | |
| Operating Temperature | |
| Relay Type | |
| Release Time | |
| Seal Rating | |
| Storage Temperature | |
| Switching Voltage | |
| Tape & Reel | |
| Termination Style |

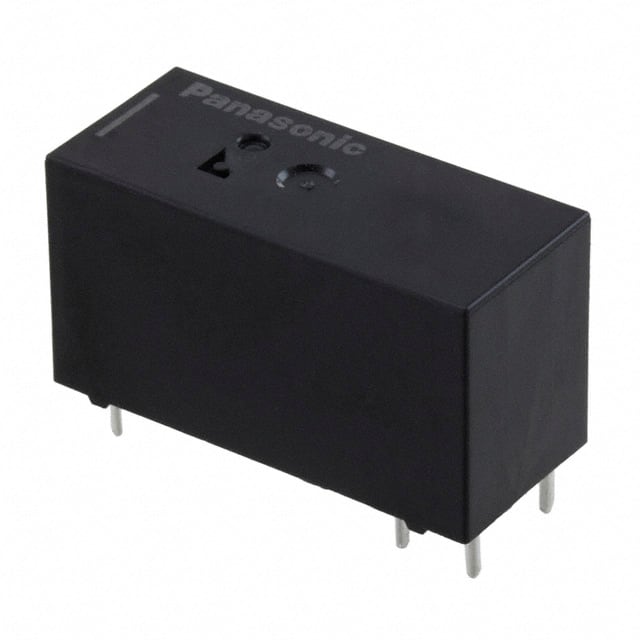

The Panasonic ALZ52F12 is a general purpose relay designed for reliable switching applications. It features a single pole, single throw, normally open (SPST-NO) contact form, capable of handling up to 16A.
The relay operates with a 12VDC coil, requiring a minimum of 8.4 VDC to operate and releasing at 1.2 VDC. The coil current is 33.3 mA. Electrical specifications include a maximum switching voltage of 440VAC. The contact material is Silver Tin Oxide (AgSnO).
Designed for Through Hole mounting with PC Pin termination, this relay offers a sealed enclosure for protection. It operates within a temperature range of -40°C to 105°C. The operate time is 15 ms and the release time is 5 ms. Coil insulation is rated Class F.
This component is RoHS3 Compliant and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The coil voltage for the ALZ52F12 relay is 12VDC.
The ALZ52F12 relay has a contact rating of 16A.
The ALZ52F12 relay has a SPST-NO (1 Form A) contact form.
The operating temperature range for the ALZ52F12 relay is -40°C to 105°C.
The ALZ52F12 relay is mounted using the Through Hole method.
