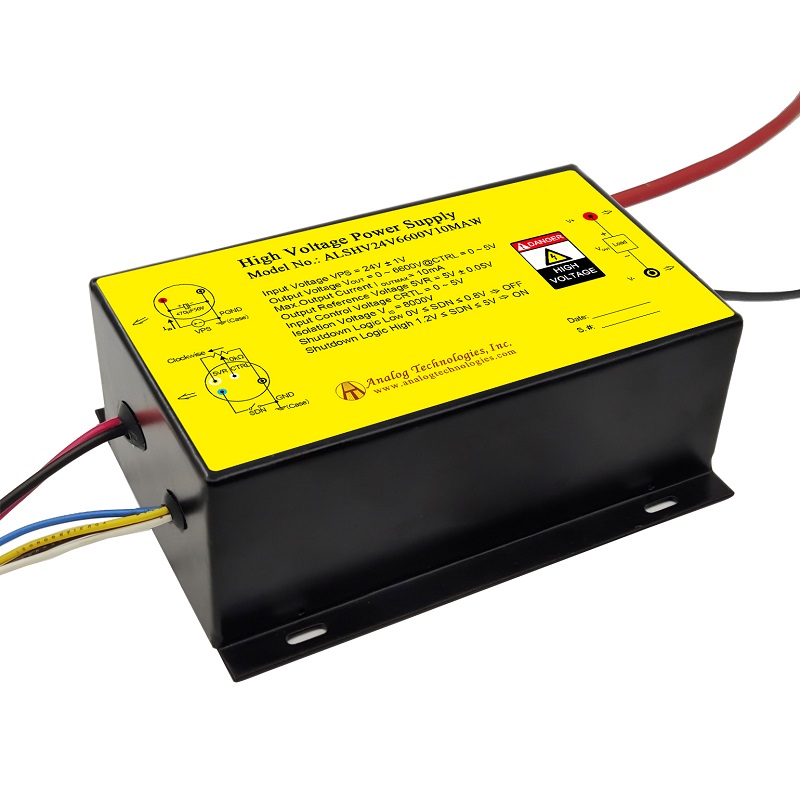

The ALSHV24V6600V10MAW from Analog Technologies is a compact, high-performance DC-DC high voltage power supply module. It is designed to convert a stable 24V DC input into a precise and adjustable 0V to 6600V output, with a maximum output current of 10mA.
This module features high precision and linear regulation, ensuring stable and accurate high voltage control. It offers full output voltage modulation and input-to-output isolation, rated at 8kVDC for enhanced safety and system reliability. The unit includes overload and short circuit protection for increased robustness.
Controlled via a 0V to 5V analog signal or a 10k potentiometer, the output voltage can be smoothly adjusted. A dedicated shutdown input allows for logic-level remote on/off control, facilitating system safety and interlock integration. The converter is housed in a heavy-duty metal enclosure, which helps minimize EMI interference in noise-sensitive environments.
With a typical full-load efficiency of 75% or higher, the ALSHV24V6600V10MAW is suitable for demanding industrial, scientific, analytical, and medical applications. Its dimensions are 140.0mm x 100.0mm x 55.0mm, and it is designed for chassis mounting.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 23V to 25V, with a nominal input voltage of 24V.
The ALSHV24V6600V10MAW provides an adjustable output voltage from 0V to 6600V with a maximum output current of 10mA.
The typical full-load efficiency is 75% or higher.
The module provides 8kVDC isolation between input and output.
The dimensions are 140.0mm in length, 100.0mm in width, and 55.0mm in height.
The operating temperature range is -20°C to 55°C.
