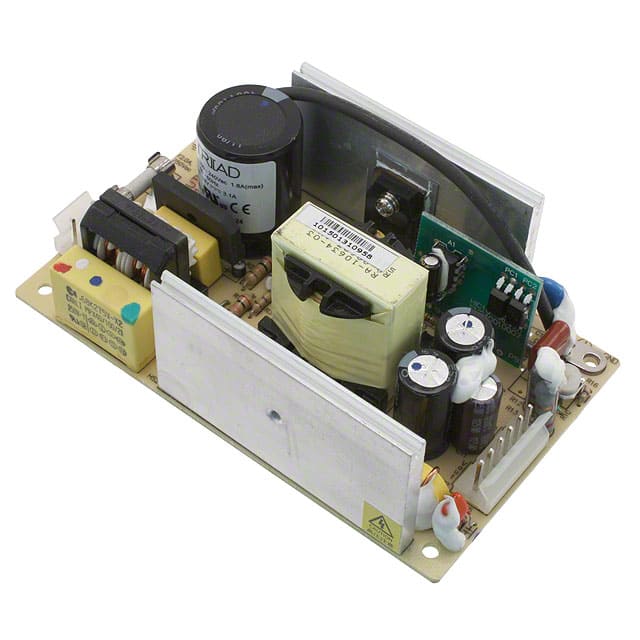

The Triad Magnetics ALS75-12 is a single output AC/DC power supply designed for cost-effective integration into various systems. It offers a 12VDC output with a maximum current of 6.2A, delivering a total of 75W of power.
This open frame power supply features a universal input voltage range of 90-260Vac and operates at a frequency of 47-63Hz. Key electrical specifications include a typical efficiency of 70%, line regulation of 1.0%, and load regulation of 2.0%. Protection features include over-current, over-voltage, and short-circuit protection.
The ALS75-12 is built to comply with European EMC standards EN55022-B and meets IEC61000-4-4, IEC61000-4-2, and IEC61000-4-5 requirements. It operates within a temperature range of 0 to 50°C with convection cooling and has dimensions of 76.20mm x 127mm x 42mm.
Designed for ITE (Commercial) applications, this power supply is suitable for chassis mounting and utilizes Molex connectors for AC and DC connections. It is RoHS3 compliant and has an MSL rating of 1.
The output voltage is 12.0Vdc.
The maximum output current is 6.2A.
The total output power is 75W.
The input voltage range is 90-260Vac.
The dimensions are 76.20mm x 127mm x 42mm.
The operating temperature range is 0 to 50°C with convection cooling.
Yes, the ALS75-12 is RoHS3 Compliant.
