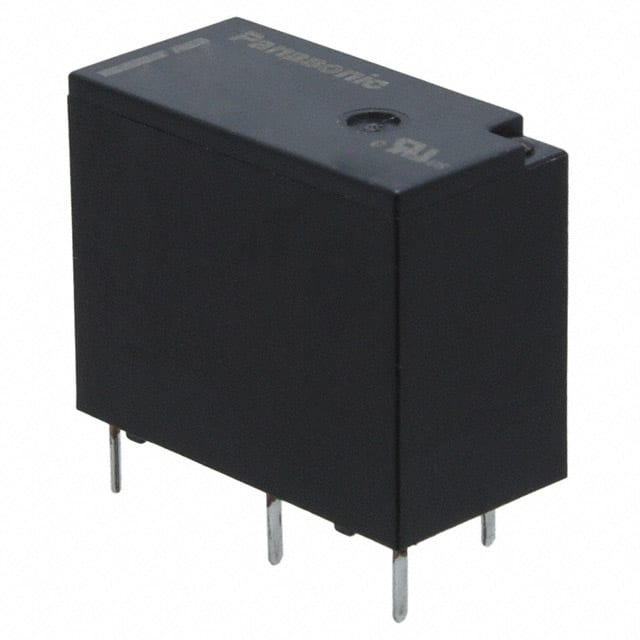

ALQ124 The Panasonic ALQ124 is a general purpose relay with a 10A contact rating and a 24VDC coil voltage. It features a SPDT contact form and through-hole mounting.
Mfr Part #:

ALQ124

Available from 4 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
The Panasonic ALQ124 is a general purpose relay with a 10A contact rating and a 24VDC coil voltage. It features a SPDT contact form and through-hole mounting.
✓ Total Stock: 101,463 pcs
$ Price Range: $2.00

ALQ124 Available from 4 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
100,000 pcs
On Request
100000 pcs On Request 1 On Request On Request 2020+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,145 pcs
On Request
1145 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
200 pcs
On Request
200 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
118 pcs
On Request
118 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ALQ124 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Coil Current
Coil Insulation
Coil Type
Coil Voltage
Contact Form
Contact Material
Contact Rating (Current)
Lead Style
Mounting Type
Must Operate Voltage
Must Release Voltage
Operate Time
Operating Temperature
Relay Type
Release Time
Switching Voltage
Termination Style
View Similar Products (0)

ALQ124 Description

Short technical summary and product information.

The Panasonic ALQ124 is a general purpose relay designed for reliable performance in various applications. It features a 1 Form C (SPDT) contact configuration, capable of switching up to 10A at 250VAC. The relay operates with a nominal coil voltage of 24VDC and has a coil current of 16.7 mA.



Designed for through-hole mounting with PC pin termination, the ALQ124 offers a robust solution for power control needs. Its operating temperature range is -40°C to 85°C, ensuring functionality in diverse environmental conditions. The contact material is Silver Nickel (AgNi), known for its durability and conductivity.



This relay meets IEC/EN60335-1 and IEC/EN60079-15 standards. It is compliant with RoHS3 directives and has an MSL rating of 1.

ALQ124 Quick Information

Product Type: General Purpose Relay
Canonical Name: Panasonic ALQ124 General Purpose Relay
Subcategory: Power Relay

ALQ124 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ALQ124 Estimated Pricing

Qty Low High
1+ $2.00 $2.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

ALQ124 Features

  • 10A contact rating for power switching.
  • 24VDC coil voltage.
  • SPDT (1 Form C) contact configuration.
  • Through-hole mounting with PC pins.
  • Operates from -40°C to 85°C.

ALQ124 Applications

  • Suitable for general purpose switching.
  • Used in control systems.
  • Power distribution applications.
  • Automation equipment.

ALQ124 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the coil voltage of the ALQ124 relay?

The coil voltage of the ALQ124 relay is 24 VDC.

What is the contact rating of the ALQ124 relay?

The contact rating is 10 A.

What type of contact form does the ALQ124 have?

It has an SPDT (Single Pole Double Throw) contact form.

What is the operating temperature range of the ALQ124?

The relay operates within -40°C to 85°C.

Is the ALQ124 relay RoHS compliant?

Yes, it is RoHS3 compliant.
