| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,000 pcs
|
10000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,077 pcs
|
1077 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Current | |
| Coil Insulation | |
| Coil Type | |
| Coil Voltage | |
| Contact Form | |
| Contact Material | |
| Contact Rating (Current) | |
| Mounting Type | |
| Must Operate Voltage | |
| Must Release Voltage | |
| Operate Time | |
| Operating Temperature | |
| Relay Type | |
| Release Time | |
| Switching Voltage | |
| Termination Style |

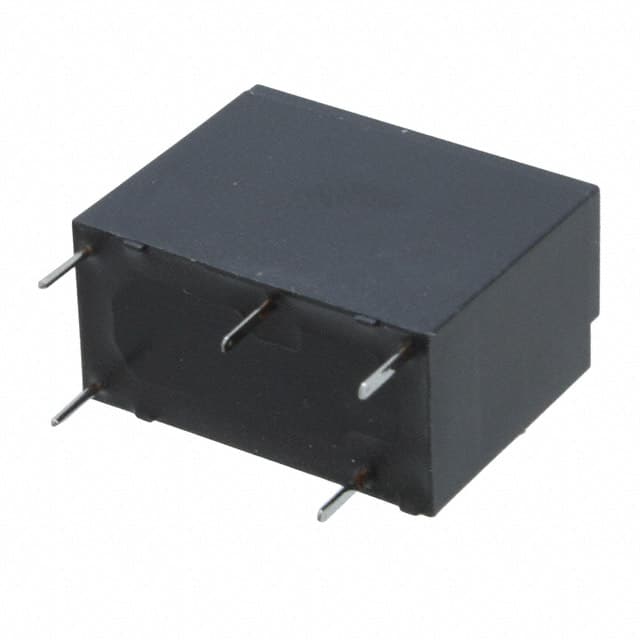

The Panasonic Electronic Components ALQ112 is a general purpose relay designed for power applications. It features a Single Pole Double Throw (SPDT) contact form, capable of switching up to 10 Amps at 250VAC.
The relay operates with a 12VDC coil voltage, requiring a minimum of 9VDC to operate and releasing at or below 0.6VDC. The coil current is 33.3 mA. Both the operate and release times are rated at 20 ms.
This relay is suitable for operation within a temperature range of -40°C to 85°C. It is constructed with Silver Nickel (AgNi) contact material for reliable performance. The mounting type is through-hole with a PC pin termination style.
The ALQ112 has a coil insulation rating of Class B and is a non-latching type. It is RoHS3 compliant and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The coil voltage for the ALQ112 relay is 12VDC.
The ALQ112 relay has a contact current rating of 10A.
The operating temperature range for the ALQ112 relay is -40°C to 85°C.
The ALQ112 relay has an SPDT (1 Form C) contact form.
The ALQ112 relay is designed for through-hole mounting.
