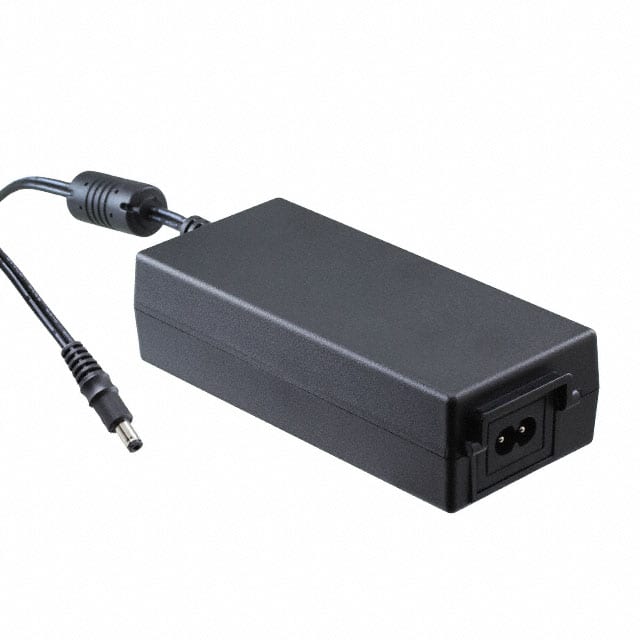

The XP Power ALM85 series AC-DC power supply, model ALM85US19C2-8, delivers 85W of power with a 19V output at 4.47A. This external power supply is designed for medical and commercial IT equipment (ITE) applications, meeting international safety standards.
Key features include Level VI energy efficiency and EU CoC Tier 2 compliance, ensuring low standby power consumption of less than 0.15W. The unit operates within a temperature range of 0°C to 60°C and has an IP32 environmental rating with a sealed enclosure suitable for clinical settings.
The ALM85US19C2-8 utilizes an IEC 320-C8 input connector and features a 2.5mm I.D. x 5.5mm O.D. barrel plug output connector with a positive center polarization. Its dimensions are 135.0mm x 62.0mm x 37.0mm. The power supply is Class II rated and comes with a 3-year warranty.
80-264 VAC (derate linearly from 100% load at 90 VAC to 80% load at 80 VAC).
19V nominal at 4.47A.
0°C to 60°C.
60601-1 (medical) and 62368-1 (ITE).
Level VI and CoC Tier 2.
Desktop (Class II) with IEC 320-C8 input and 2.5mm x 5.5mm barrel plug output, positive center.
135.0mm x 62.0mm x 37.0mm.
