| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Form Factor | |
| Halogen Free | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage | |
| Weight | |
| Width |

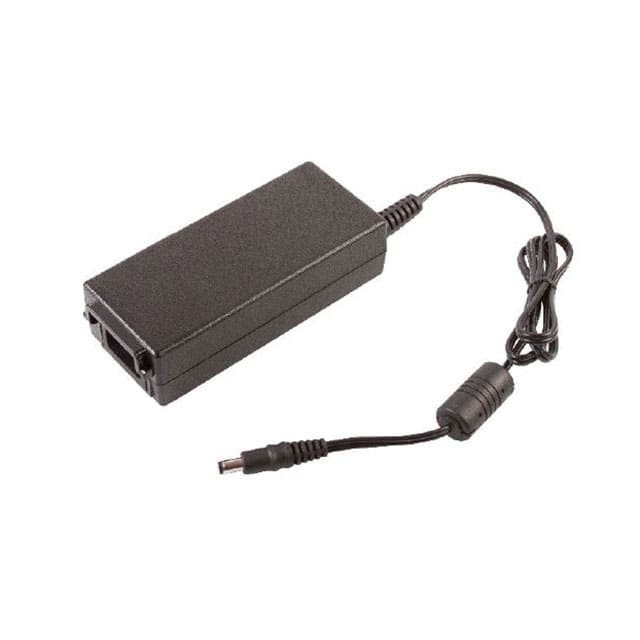

The XP Power ALM65US12C2-8 is a 65W AC-DC power supply designed for medical and IT equipment applications. It delivers a stable 12V output with a current rating of 5.4A.
This adapter features high efficiency, meeting Energy Efficiency Level VI standards, and has a low standby power consumption of less than 210mW. It operates within a temperature range of 0°C to 60°C and has an IP32 rating for its sealed enclosure, making it suitable for clinical environments.
The unit is designed with international safety approvals, including standards like 60601-1 and 62368-1. It utilizes a C8 input connector and a 2.5mm I.D. x 5.5mm O.D. barrel plug output connector with a positive center polarization.
Key specifications include dimensions of 125.5 x 55.5 x 33.5mm, an input voltage range of 80-264 VAC, and an efficiency of 88%. The adapter is built for reliability with a Mean Time Between Failure (MTBF) of over 300,000 hours.
The output voltage is 12V DC.
The operating temperature range is 0°C to 60°C.
Typical efficiency is 88% at 115VAC input, 25%-100% load.
Input-to-output isolation is 4000 VAC (2 x MOPP). Input-to-ground isolation is 1500 VAC (1 x MOPP for Class I versions). Output-to-ground isolation is 500 VAC (Class I versions only).
Maximum no-load power consumption is 210mW.
It is certified to EN 60601-1 and EN 62368-1, with CB and CE approvals.
It is a desktop Class II adapter with an IEC 320-C8 input connector and a barrel plug output (2.5mm ID x 5.5mm OD x 9.5mm) with positive center polarity.
