| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Dimensions | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Weight | |
| Width |

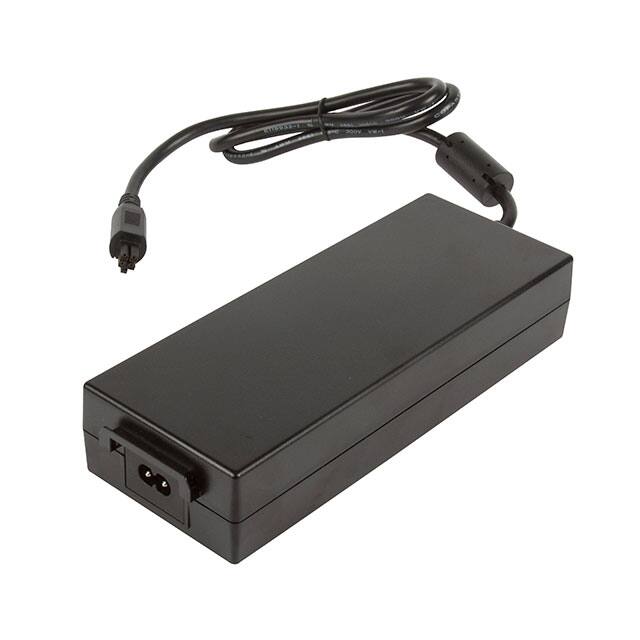

The XP Power ALM200 series AC-DC power supply, model ALM200PS48C2-8, delivers 202 watts of power with a 48V output voltage and 4.2A current. Designed for high efficiency, it meets Energy Efficiency Level VI and EU CoC Tier 2 requirements, with a low standby power consumption of less than 0.15W.
This external power supply operates within a temperature range of 0°C to 60°C and features a sealed enclosure with IP32 rating, making it suitable for clinical environments. It is approved to international medical and IT safety standards, including 60601-1 and 62368-1, and carries approvals from CB, CCC, CE, CSA, PSE, RCM, and TUV.
The ALM200PS48C2-8 has a desktop form factor and utilizes an IEC 320-C8 input connector. Its dimensions are 209.0mm x 82.0mm x 43.0mm. The unit is designed for applications in ITE (Commercial) and Medical fields, offering a reliable power solution with a 3-year warranty.
48V at 4.2A.
80-264 VAC.
0°C to 60°C.
Level VI and CoC Tier 2.
CB, CCC, CE, CSA, PSE, RCM, TUV, to standards 60601-1 and 62368-1.
Desktop Class II adapter.
3 years.
