| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Power | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Weight |

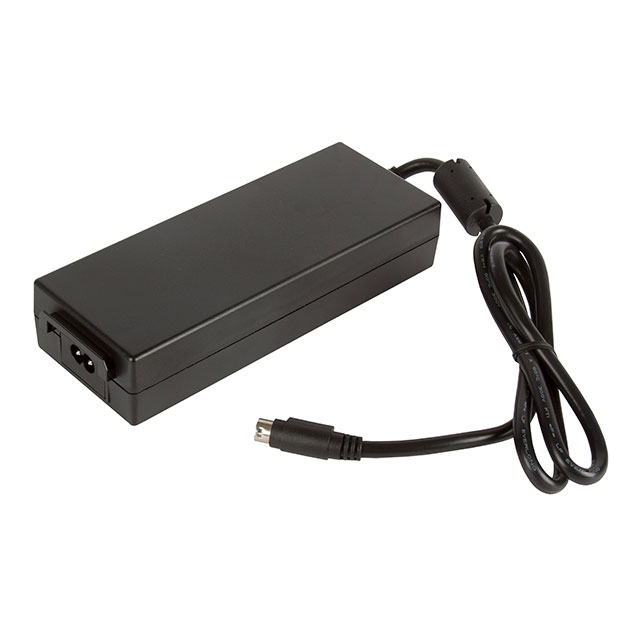

The XP Power ALM150PS12C2-8 is a versatile AC-DC external power supply from the ALM150 series, delivering 150 watts of power with a 12V output voltage and 12.5A current. Designed for reliability and efficiency, it meets Level VI energy efficiency standards and EU CoC Tier 2 requirements, ensuring compliance with environmental legislation.
This power supply features a Class II enclosure and an IEC 320-C8 input connector, with a 4-pin Power DIN output connector. It operates across a wide input voltage range of 80-264 VAC and maintains a low standby power consumption of less than 0.15W. The unit is built to withstand demanding environments, operating from 0°C to 60°C.
Approved by major agencies including CB, CSA, CCC, KC, PSE, RCM, TUV, and UL, the ALM150PS12C2-8 is suitable for both ITE (Commercial) and Medical applications. Its sealed enclosure with an IP32 rating and smooth surface finish makes it easy to clean in clinical settings. The dimensions are 186.0mm x 72.0mm x 38.0mm, and it weighs approximately 635g.
The output power is 150W.
The output voltage is 12V with a current of 12.5A.
The input voltage range is 80-264 VAC and the input frequency range is 47-63 Hz.
The operating temperature range is 0°C to 60°C.
It meets Level VI and EU CoC Tier 2 efficiency standards.
It complies with standards including 60601-1, 60950-1, and 62368-1, and has approvals from CB, CSA, CCC, KC, PSE, RCM, TUV, and UL.
It features an IEC 320-C8 input connector and a 4-pin Power DIN output connector.
