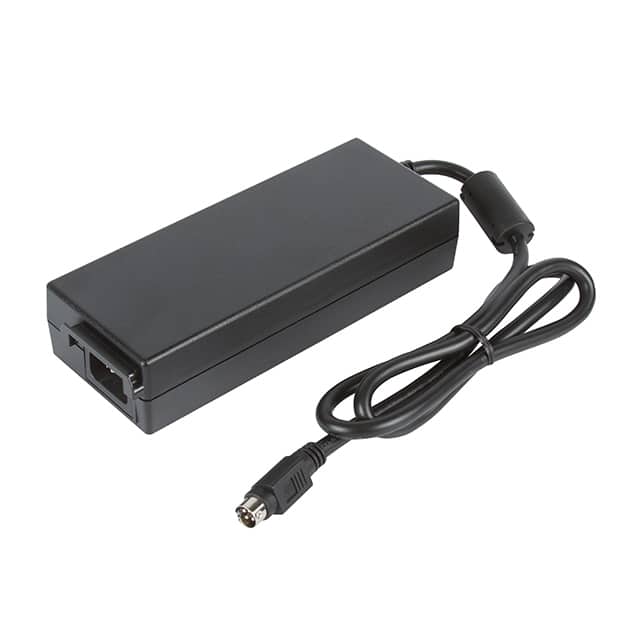

The XP Power ALM120PS19C2-8 is a versatile AC-DC power supply designed for both commercial ITE and medical applications. It delivers a robust 120W of power with a 19V output and a current rating of 6.32A.
This power supply meets stringent energy efficiency requirements, achieving Level VI and EU CoC Tier 2 compliance. It operates reliably within a temperature range of 0°C to 60°C, making it suitable for various environmental conditions. The unit features a Class II design and comes with an IEC 320-C8 input connector, with a cord length of 35.4 inches (0.9m).
Designed for ease of use and safety, the ALM120PS19C2-8 supports international voltage standards and has received numerous approval agency certifications, including CB, CCC, CE, CSA, KC, PSE, TUV, and UL. Its output is delivered via a 4-pin Power DIN connector. The enclosure is sealed to IP32 standards, facilitating cleaning in clinical settings.
The ALM120PS19C2-8 provides a 19V output at 6.32A.
The power rating for this unit is 120 Watts.
The operating temperature range is 0°C to 60°C.
It uses an IEC 320-C8 input connector.
It complies with standards such as 60601-1 and 62368-1.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
