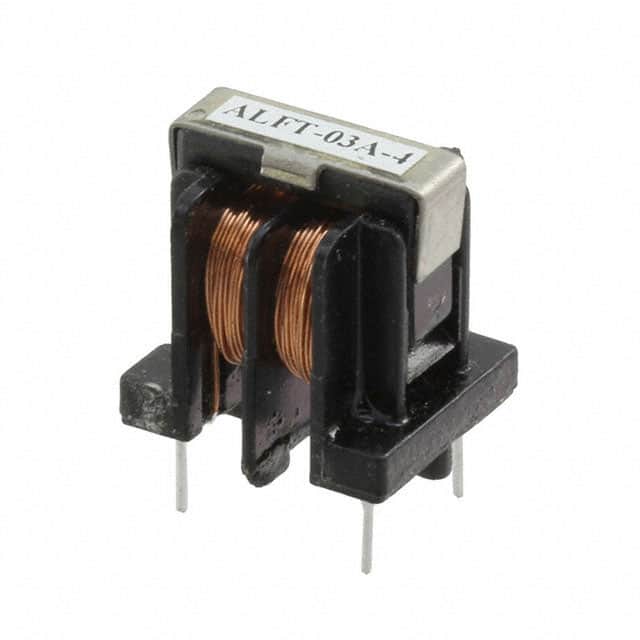

ALFT-03A-8 is a common mode line filter (choke) from Abracon LLC, part of the ALFT-03A series. It is designed to suppress common mode noise in digital and audio/video applications.
This choke offers a minimum common mode inductance of 5.5 mH at 1 kHz (0.1 Vrms), a maximum DC resistance of 0.75 Ω, and a rated current of 1 A. It is rated for 250V AC operation and provides a minimum insulation resistance of 100 MΩ. The component operates over a temperature range of -25°C to +85°C.
The component comes in a vertical, 4 PC pin through-hole package with dimensions of 18.0 x 23.9 x 21.6 mm. It is RoHS/RoHS II compliant and is supplied in standard packaging of 144 pieces per box.
Typical applications include filtering common mode noise in USB, IEEE 1394, LVDS interfaces, digital cameras, scanners, and digital audio/video equipment such as PDAs, DSCs, DVCs, and DVD players. The choke presents high common mode impedance and enables significant noise suppression at high frequencies.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.15 | $3.15 |
| 10+ | $2.59 | $2.59 |
| 25+ | $2.26 | $2.26 |
| 100+ | $2.07 | $2.07 |
| 288+ | $1.94 | $1.94 |
| 576+ | $1.83 | $1.83 |
| 1,008+ | $1.75 | $1.75 |
| 2,592+ | $1.62 | $1.62 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-25°C to +85°C.
250V AC.
Vertical, 4 PC Pin.
Yes, RoHS/RoHS II compliant.
5.5mH minimum at 1kHz.
1A maximum.
0.75Ω.
