| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,638 pcs
|
1638 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Current | |
| Coil Insulation | |
| Coil Type | |
| Coil Voltage | |
| Contact Form | |
| Contact Material | |
| Contact Rating (Current) | |
| Lead Style | |
| Mounting Type | |
| Must Operate Voltage | |
| Must Release Voltage | |
| Operate Time | |
| Operating Temperature | |
| Relay Type | |
| Release Time | |
| Switching Voltage | |
| Termination Style |

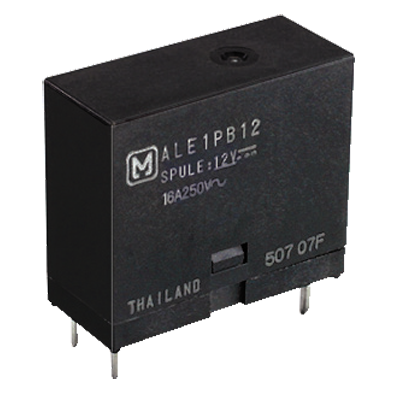

The Panasonic ALE1PB12 is a general-purpose power relay designed for through-hole mounting with PC pin termination. This relay features a 1 Form A (SPST-NO) contact configuration, capable of switching up to 16A. It operates with a 12VDC coil, requiring a minimum of 9VDC to operate and releasing at or below 0.6VDC. The coil current is typically 33.3 mA.
With a switching voltage rating of up to 277VAC, the ALE1PB12 is suitable for various power applications. It has an operating temperature range of -40°C to 85°C and offers operate and release times of 20 ms each. The contact material is Silver Tin Oxide (AgSnO).
This product is listed as discontinued. It is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1. The REACH status is unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The relay has a nominal operating voltage of 12 VDC.
The maximum switching voltage is 277 VAC.
The contact form is SPST-NO (1 Form A).
The contact material is Silver Tin Oxide (AgSnO).
The relay operates within -40°C to 85°C.
Yes, it is RoHS3 compliant, although this status is unverified.
