Mfr Part #:

AL6M-M14P-G

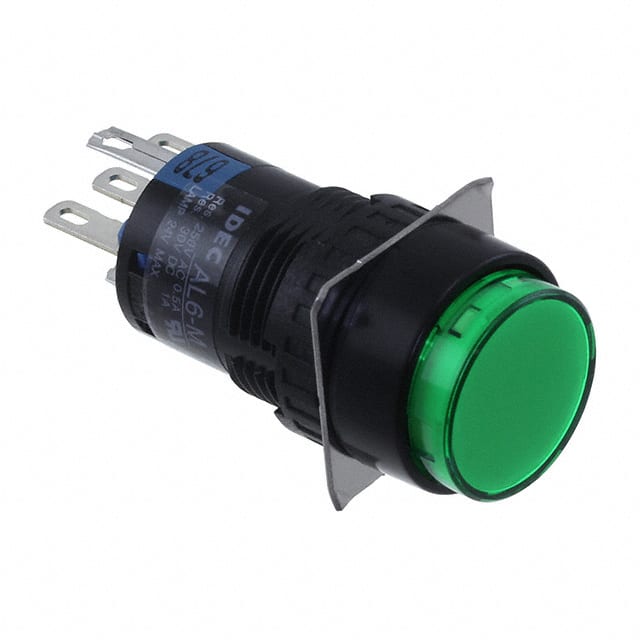

Name: AL6M-M14P-G
Brand: Idec
SKU: AL6M-M14P-G

Mfr Name: Idec

Description:

16MM PUSHBUTTON ILLUMINATED

Stock on Request

AL6M-M14P-G Description

Short technical summary and product information.

16MM PUSHBUTTON ILLUMINATED

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Pushbutton Switches
Manufacturer Name	Idec
Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPDT
Color	Green
Current Rating (Amps)	1A (AC/DC)
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	24 VAC/DC
Ingress Protection	IP65 - Dust Tight, Oil and Water Resistant
Mounting Type	Panel Mount, Front
Operating Temperature	-25°C ~ 55°C
Panel Cutout Dimensions	Circular - 16.20mm Dia
Switch Function	On-Mom
Termination Style	Solder, Quick Connect - 0.110" (2.8mm)
Type	Standard, Illuminated
Voltage Rating	120 V
