| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,201 pcs
|
1201 pcs | On Request | 1 | On Request | On Request | 1838+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Dimming | |
| Halogen Free | |
| Internal Switch(s) | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| Supplier Device Package | |
| Type | |
| Voltage |

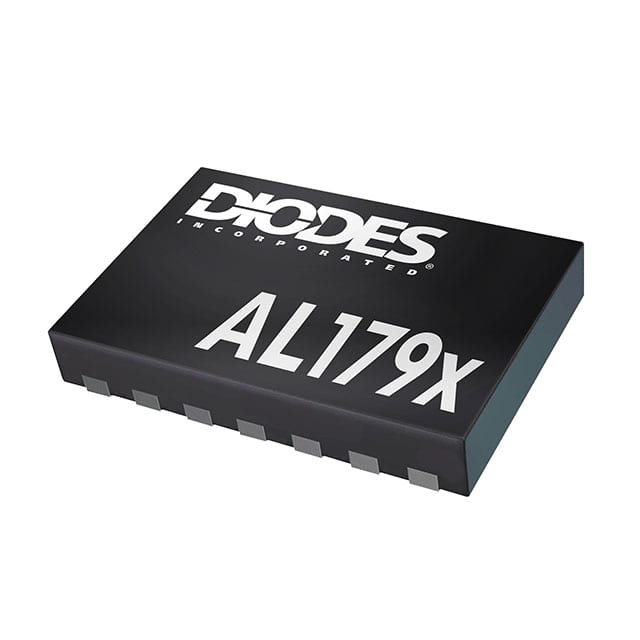

The AL1792AFE-13 from Diodes Incorporated is a dual-channel, current-ratio-optimized LED driver designed for smart lighting applications. It supports both analog and PWM dimming for precise control.
Key electrical specifications include an input voltage range of 6.5V to 30V and an output current capability of 500mA per channel. The device operates within an ambient temperature range of -40°C to 125°C.
Packaged in a 14-UDFN exposed pad (U-DFN4030-14), this surface-mount component is suitable for various lighting solutions. It integrates internal protections such as UVLO and LED string open/short protection, along with over-temperature protection.
This LED driver is designed for cost-effectiveness and ease of system implementation, making it a scalable solution for tunable white and color smart connected lighting systems, including bulbs, tubes, panel lights, and troffers.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.17 | $0.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 6.5V to 30V.
The AL1792AFE-13 has 2 output channels.
The maximum output current is 500mA.
The operating temperature range is -40°C to 125°C.
It supports both analog and PWM dimming.
It is supplied in a 14-UDFN exposed pad package (U-DFN4030-14).
The device is RoHS3 Compliant.
