AC1-B0-16-625-1G1-C
Littelfuse Inc.
The Littelfuse Inc. AC1-B0-16-625-1G1-C is a magnetic (hydraulic delay) circuit breaker. It features a 25A current rating and a 277V voltage rating.
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

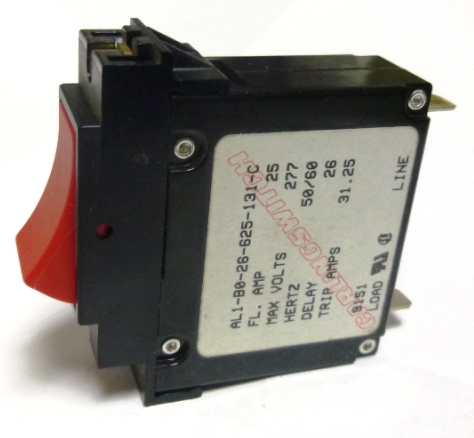

This AL1-B0-26-625-131-C circuit breaker from Littelfuse Inc. is a single-pole AC device rated for 25A and a maximum voltage of 277V. It features a magnetic hydraulic delay trip mechanism and a rocker actuator.
The breaker is designed for panel mounting, offering a secure and accessible installation point in various electrical systems. Its specifications include a 50/60Hz frequency rating and a trip amperage of 31.25A, with a delay setting of 26.
Key electrical characteristics include its 25A current rating and 277VAC maximum voltage. The physical dimensions are 0.75" wide x 2.32" high x 2.015" deep for the body, with an overall depth of 2.8". This circuit breaker is suitable for applications requiring reliable overcurrent protection in AC circuits.
The current rating is 25A.
The maximum voltage rating is 277V.
It is designed for panel mounting.
It uses a magnetic hydraulic delay trip mechanism.
This is a single-pole circuit breaker.
The trip amperage is 31.25A.
The body dimensions are 0.75" wide x 2.32" high x 2.015" deep, with an overall depth of 2.8".
