| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
265 pcs
|
265 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Material | |
| Design | |
| Insulation Material | |
| Mounting Type | |
| Number of Poles | |
| Pitch |

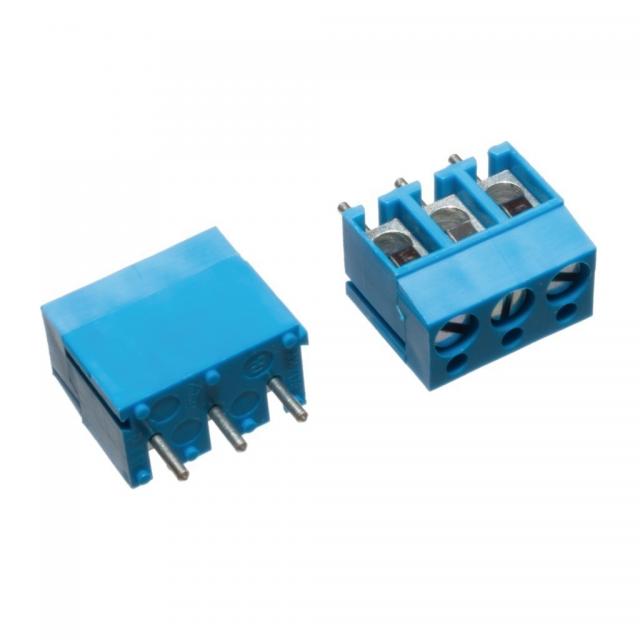

The PTR Messtechnik AKZ120/3DS-5.08-V-BLUE is a vertical PCB terminal block designed for reliable electrical connections. It features a 3-pole configuration with a standard 5.08mm pitch, making it suitable for various printed circuit board applications.
This terminal block is rated for a maximum continuous current of 24A and a maximum voltage of 250V, with a dielectric strength of 2kV. The housing is constructed from PA 66 insulation material, and the contacts are made of brass. It supports wire cross-sections ranging from a minimum of 0.2mm² to a maximum of 2.5mm².
Designed for through-hole mounting, this component offers a secure connection to the PCB. The operating temperature range for this terminal block is from -30°C to +105°C, ensuring performance in a variety of environmental conditions. Its blue color aids in identification and organization within assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.23 | $0.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions.
5.08 mm.
24 A continuous.
250 V.
PCB mountable, through-hole mounted.
-30 °C to 105 °C.
2 kV.
