| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Temperature Coefficient | |
| Voltage | |
| Weight | |
| Width |

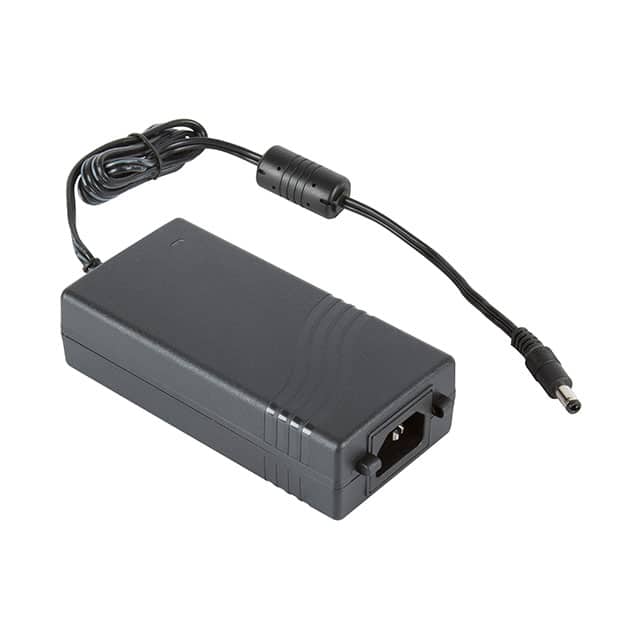

The XP Power AKM90PS48 is a 90-watt AC-DC desktop power supply designed for ITE and medical applications. It provides a stable 48V output at 1.88A, featuring a total regulation of 5% and high efficiency up to 89% typical.
This power supply complies with Energy Efficiency Level VI and European CoC Tier 2 standards, ensuring low no-load power consumption (150mW max). It operates across a wide input voltage range of 90-264 VAC and includes essential protections like overload and short circuit.
Designed for versatility, the AKM90PS48 has an IEC 320-C14 input connector and a barrel plug output (2.5mm I.D. x 5.5mm O.D.). Its compact dimensions are 146.3mm x 59.9mm x 36.8mm. The unit is approved by major agencies including CB, CCC, CE, CSA, TUV, and UL, making it suitable for international use.
The output voltage is 48V.
The maximum output current is 1.88A.
The power rating is 90W.
The typical efficiency is 89%.
The input voltage range is 90-264 VAC and the frequency range is 47-63 Hz.
The operating temperature range is 0°C to 60°C.
It complies with 60601-1, 60950-1, and 62368-1 standards.
