| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Dimensions | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Military Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage | |
| Weight | |
| Width |

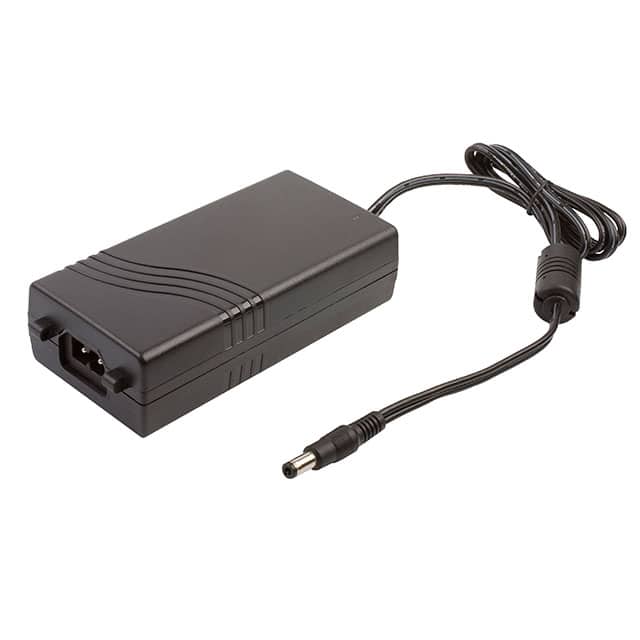

The XP Power AKM65US12C2 is a 65W AC/DC desktop power supply designed for medical, home-healthcare, and IT applications. It features a 12V output voltage with a 5.42A current rating, providing reliable power for various devices.
This adapter complies with the latest energy efficiency Level VI standards, ensuring high active mode efficiency and low no-load power consumption. It holds medical (2 x MOPP) and ITE approvals, along with IEC/EN60601-1-11 for home healthcare use. The input voltage range is 80 to 264VAC, making it suitable for international applications.
The unit operates within a temperature range of 0°C to +60°C and has an IP22 ingress protection rating. Its dimensions are 125.0mm x 62.3mm x 34.0mm, and it features a standard IEC 320-C8 input connector and a barrel plug output connector (2.5mm I.D. x 5.5mm O.D. x 11.0mm). The AKM65US12C2 is available in Class I and Class II versions.
12V.
5.42A.
65W.
80-264VAC.
0°C to 60°C.
89% typical, Level VI.
Desktop (Class II).
