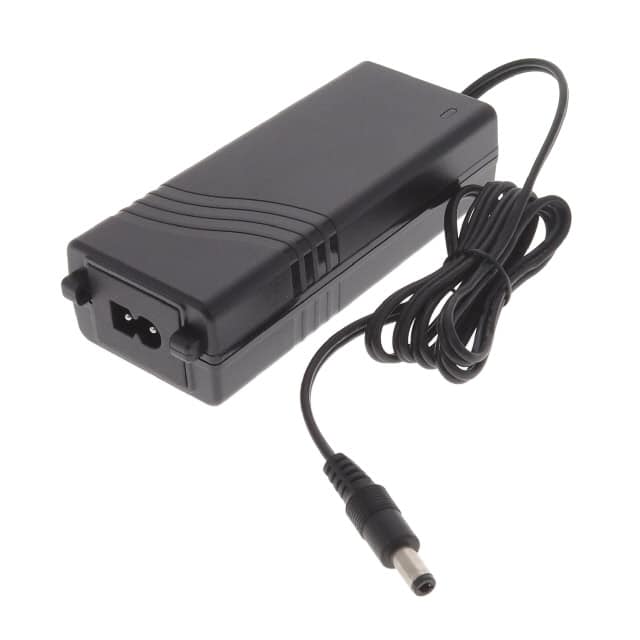

The XP Power AKM45US15C2 is an AC/DC desktop adapter with a power rating of 48W and an output voltage of 15V. This unit meets Level VI energy efficiency standards and is compliant with CoC Tier 2.
Designed for versatility, it accepts international input voltage from 100-240 VAC and features an IEC 320-C8 input connector. The output is delivered via a 2.5mm I.D. x 5.5mm O.D. barrel plug with positive center polarization. Its compact dimensions are 122.2mm x 51.3mm x 31.5mm, making it suitable for various ITE (Commercial) and Medical applications.
Operating within a temperature range of 0°C to 60°C, the AKM45US15C2 offers a low no-load power consumption of 75mW maximum. It is approved by major agencies including CB, CE, CSA, TUV, and UL, ensuring compliance with international safety standards.
The output voltage is 15 VDC.
The maximum power output is 48 W.
The operating temperature range is 0°C to 60°C.
It uses an IEC 320-C8, Polarized input connector.
The dimensions are 122.2mm x 51.3mm x 31.5mm.
It meets Level VI efficiency and CoC Tier 2.
