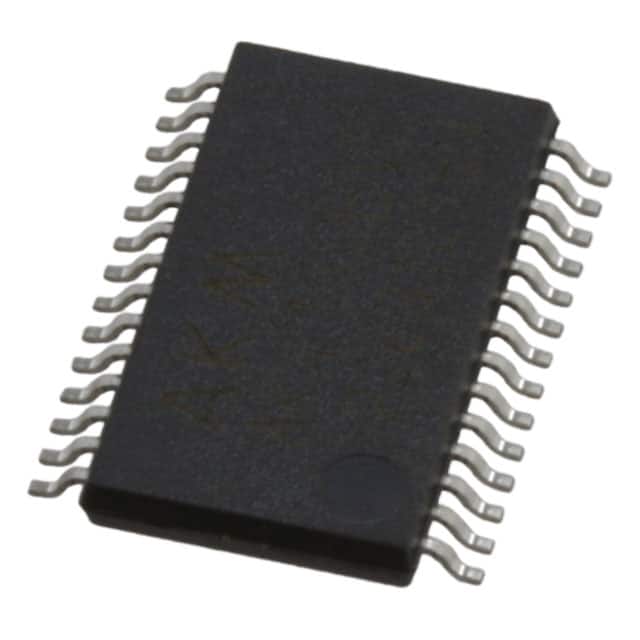

AK4393VF The AK4393VF is a high-performance 24-bit stereo audio DAC from Asahi Kasei Microdevices, supporting sampling rates up to 108kHz with I²S data interface.
Mfr Part #:

AK4393VF

Available from 2 distributors
Mfr Name: Asahi Kasei Microdevices/AKM
Asahi Kasei Microdevices/AKM
The AK4393VF is a high-performance 24-bit stereo audio DAC from Asahi Kasei Microdevices, supporting sampling rates up to 108kHz with I²S data interface.
✓ Total Stock: 6,370 pcs

AK4393VF Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
6,358 pcs
On Request
6358 pcs On Request 1 On Request On Request On Request On Request On Request
Fe Components ✓
Non-Authorised Inventory information
12 pcs
On Request
12 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AK4393VF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Data Interface
Mounting Type
Number of Channels
Operating Temperature
Resolution (Bits)
Sampling Rate (Per Second)
Supplier Device Package
Type
Voltage
Voltage Supply Source
View Similar Products (0)

AK4393VF Description

Short technical summary and product information.

The AK4393VF is a high-performance stereo digital-to-analog converter designed for 96kHz sampling mode applications such as DAT and DVD. It integrates a 24-bit digital filter and an advanced multi-bit delta-sigma modulator, achieving a wide dynamic range of 120dB while maintaining low distortion characteristics.



Key electrical specifications include a typical THD+N of -100dB, a dynamic range of 120dB, and a signal-to-noise ratio of 120dB. The device operates with an analog supply voltage of 4.75V to 5.25V and a digital supply voltage of 3V to 5.25V, making it compatible with 3.3V logic interfaces.



The AK4393VF features 128x oversampling, a digital filter with ±0.005dB ripple and 75dB attenuation, and supports I²S data interface. It is housed in a 28-pin VSOP surface-mount package and operates over a temperature range of -40°C to +85°C.

AK4393VF Quick Information

Product Type: Audio DAC
Canonical Name: AK4393VF 24-Bit 108kHz Stereo Audio DAC
Subcategory: Stereo DAC

AK4393VF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AK4393VF Features

  • 24-bit resolution with 108kHz sampling rate.
  • 120dB dynamic range and signal-to-noise ratio.
  • Typical THD+N of -100dB.
  • 128x oversampling with advanced delta-sigma modulation.
  • I²S data interface with differential analog outputs.

AK4393VF Applications

  • High-end stereo audio playback systems.
  • DAT and DVD audio applications.
  • Professional audio equipment requiring low distortion.
  • Consumer audio devices with 96kHz sampling.

AK4393VF FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resolution of the AK4393VF?

The AK4393VF has a resolution of 24 bits.

What is the sampling rate of the AK4393VF?

The AK4393VF supports a sampling rate of 108k Hz.

What is the supply voltage range for the AK4393VF?

The AK4393VF operates from a supply voltage of 3V to 5.25V, with separate analog (4.75V to 5.25V) and digital (3V to 5.25V) supplies.

What is the operating temperature range of the AK4393VF?

The AK4393VF operates over a temperature range of -40°C to 85°C.

What package does the AK4393VF come in?

The AK4393VF is supplied in a 28-LSSOP package (28-VSOP supplier package) for surface mount mounting.

What is the typical dynamic range of the AK4393VF?

The AK4393VF has a typical dynamic range of 120dB.

What data interface does the AK4393VF use?

The AK4393VF uses an I²S data interface.
