AK09970D The Asahi Kasei Microdevices AK09970D is a 3-axis Hall effect magnetic sensor IC. It operates from a 1.7V to 3.6V supply and features an I2C interface.
Mfr Part #:

AK09970D

Available from 1 distributors
Mfr Name: Asahi Kasei Microdevices/AKM
Asahi Kasei Microdevices/AKM
The Asahi Kasei Microdevices AK09970D is a 3-axis Hall effect magnetic sensor IC. It operates from a 1.7V to 3.6V supply and features an I2C interface.
✓ Total Stock: 41,355 pcs
$ Price Range: $1.50

AK09970D Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
41,355 pcs
On Request
41355 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AK09970D Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Axis
Features
Halogen Free
Lead Spacing
Mounting Type
Noise
Operating Temperature
Output Type
Resolution
Sensing Range
Supplier Device Package
Technology
Voltage
View Similar Products (0)

AK09970D Description

Short technical summary and product information.

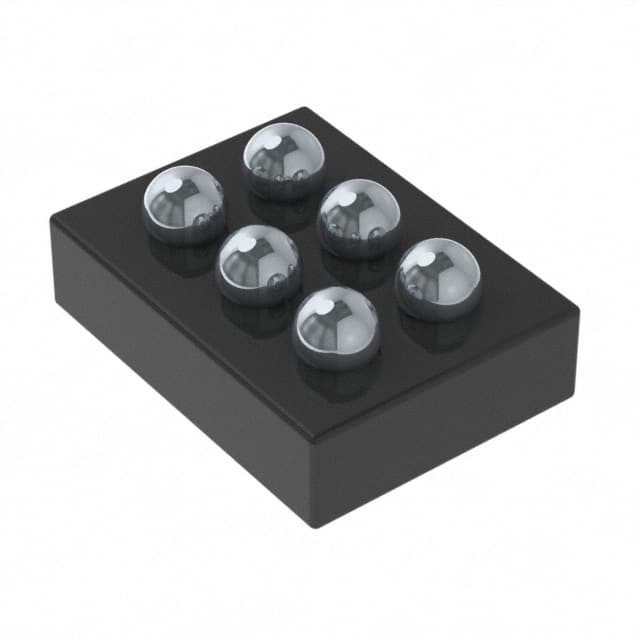

The Asahi Kasei Microdevices AK09970D is an ultra-small, 3-axis magnetic smart switch IC utilizing Hall effect technology. It is designed for applications requiring precise magnetic field detection and offers a selectable scale feature.



This sensor operates within a wide voltage range of 1.7V to 3.6V and communicates via an I2C interface. It provides a measurement range of ±36mT with a high sensitivity setting of 1.1µT/LSB. The device is suitable for detecting magnetic events and can operate with low power consumption, making it ideal for battery-powered IoT products.



The AK09970D is available in a compact 6-WLCSP (1.35x1.35mm) package and supports surface mount installation. Its operating temperature range is -40°C to 85°C, ensuring reliability in various environmental conditions.



This sensor is upward compatible with the AK09973D and is used in applications such as mobile devices for opening, closing, stroke, rotation, and push detection.

AK09970D Quick Information

Product Type: Magnetic Sensor IC
Canonical Name: AK09970D Tri-axis Magnetic Smart Switch
Subcategory: Tri-axis Magnetic Smart Switch

AK09970D Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AK09970D Estimated Pricing

Qty Low High
1+ $1.50 $1.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

AK09970D Features

  • Ultra-small 6-WLCSP package.
  • Tri-axis Hall effect sensor.
  • I2C digital interface.
  • ±36mT measurement range.
  • Low power consumption.

AK09970D Applications

  • Detects opening and closing.
  • Monitors stroke and rotation.
  • Used in mobile devices.
  • Suitable for IoT products.

AK09970D FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the AK09970D?

The AK09970D operates from a supply voltage of 1.7V to 3.6V.

What is the measurement range of the AK09970D magnetic sensor?

The AK09970D has a measurement range of ±36mT on the X, Y, and Z axes.

What interface does the AK09970D use?

The AK09970D uses an I2C interface for communication.

What is the operating temperature range for the AK09970D?

The AK09970D can operate in temperatures ranging from -40°C to 85°C.

What package type is the AK09970D available in?

The AK09970D is available in a 6-WLCSP (1.35x1.35mm) package.

What is the magnetic sensitivity of the AK09970D?

The magnetic sensitivity in high sensitivity mode is 1.1µT/LSB.
