| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,080 pcs
|
1080 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Diameter | |
| Height | |
| Inductance | |
| Lead Style | |
| Material | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Storage Temperature | |
| Tape & Reel | |
| Tolerance | |
| Type |

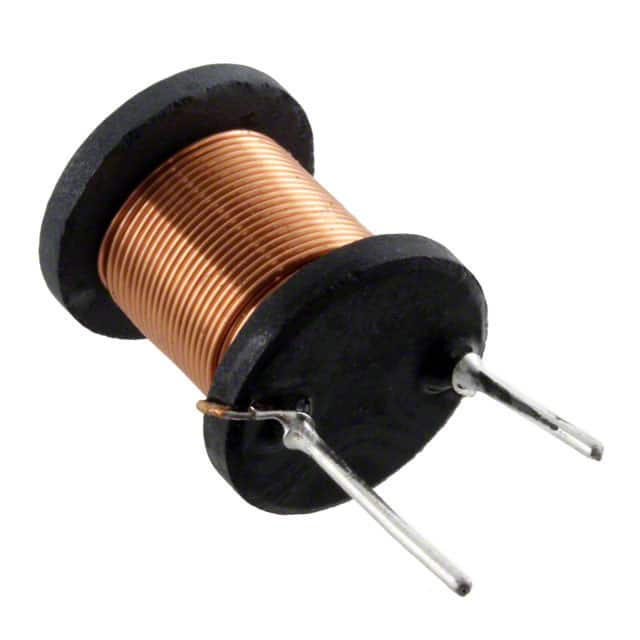

The AIUR-15-101K is an unshielded radial power inductor from Abracon LLC, part of the AIUR-15 series. It features a ferrite core with wirewound drum core construction, providing 100 µH inductance at 1 kHz with ±10% tolerance. The maximum DC resistance is 82 mOhm, and the rated current is 3.2 A, defined at a 40°C temperature rise or 10% inductance drop, whichever is lower.
This inductor is designed for through-hole mounting in a radial, vertical cylinder (open) package. It operates over a temperature range of -40°C to +125°C, including self-heating. The unshielded design is suitable for applications requiring high power density and low cost.
Typical applications include switching power supplies, noise filtering, DC-DC converters, electronic household appliances, buzzers and alarm systems, and television and audio equipment. The component is RoHS/RoHS II compliant and packaged in trays of 90 pieces.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.74 | $2.74 |
| 10+ | $2.26 | $2.26 |
| 25+ | $1.87 | $1.87 |
| 90+ | $1.80 | $1.80 |
| 270+ | $1.57 | $1.57 |
| 540+ | $1.48 | $1.48 |
| 1,080+ | $1.38 | $1.38 |
| 2,520+ | $1.34 | $1.34 |
| 5,040+ | $1.29 | $1.29 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
100 µH at 1 kHz, 0.25 V.
3.2 A maximum, defined at 40°C temperature rise or 10% inductance drop.
82 mOhm maximum.
Radial, Vertical Cylinder (Open) through-hole package.
-40°C to +125°C including self-heating.
No, it is unshielded.
Ferrite.
