| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
345 pcs
|
345 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Supplier Device Package | |
| Tape & Reel | |
| Termination Style | |
| Tolerance | |
| Type | |
| Width |

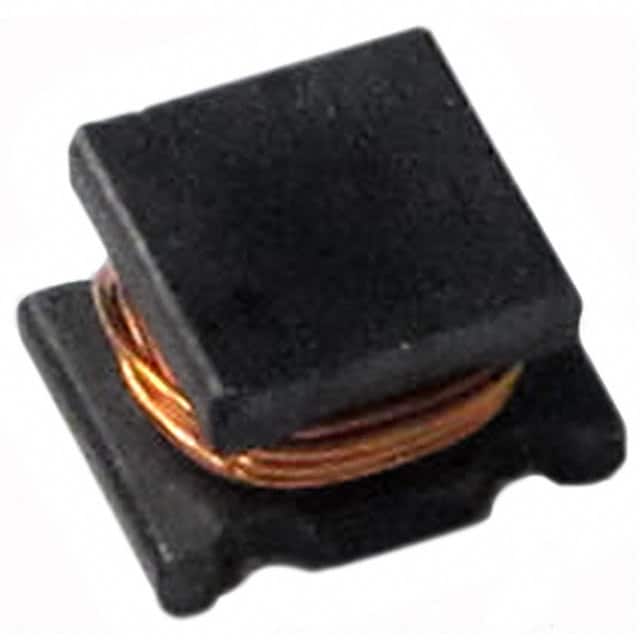

The AISC-1812H-331K-T is a fixed inductor from Abracon LLC, part of the AISC-1812H series. It offers an inductance of 330 µH with ±10% tolerance, a maximum DC resistance of 7.75 Ohms, and a rated current of 100 mA. The self-resonant frequency is 3.6 MHz minimum.
This unshielded inductor uses a ferrite core and is designed for surface mount applications. It is housed in a 1812 (4532 Metric) package with dimensions 4.50 mm x 3.20 mm x 2.80 mm. The operating temperature range is -25°C to +85°C.
Typical applications include power line DC/DC conversion, hard disk drives, notebook computers, and other electronic equipment requiring compact power inductors. The component is RoHS compliant and suitable for flow and reflow soldering.
330 µH.
100 mA maximum.
7.75 Ohms maximum.
3.6 MHz minimum.
1812 (4532 Metric) surface mount.
No, it is unshielded.
-25°C to +85°C.
