| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Lead Style | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Packaging Type | |
| Q @ Freq | |
| SVHC Present | |
| Shielding | |
| Standard Package Quantity | |
| Supplier Device Package | |
| Tolerance | |
| Type | |
| Width |

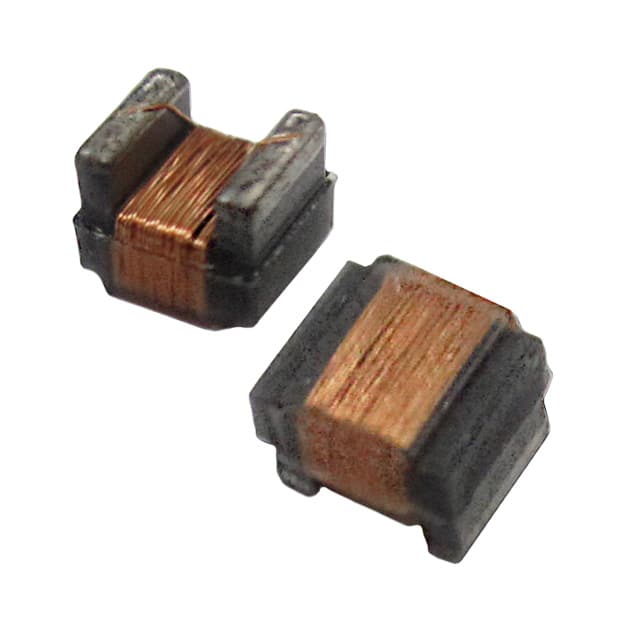

The AISC-0805HQ-6N2J-T is a ceramic wirewound inductor from Abracon LLC's AISC-0805HQ series. It offers 6.2 nH inductance with ±5% tolerance, a minimum quality factor of 88 at 1 GHz, and a self-resonant frequency of 4.75 GHz. The DC resistance is 35 mOhm maximum, and the rated current is 1.6 A. The component operates over a temperature range of -40°C to +125°C.
Designed for surface mount assembly, it occupies an 0805 package (2.29 mm x 1.73 mm x 1.52 mm) and is unshielded. The ceramic core provides high Q and stability, making it suitable for RF circuits. Typical applications include Bluetooth, WLAN, GPS, cellular phones, cable modems, and broadband network equipment.
This inductor is RoHS compliant (RoHS II) and supplied in Tape & Reel packaging with 2000 pieces per reel.
6.2 nH.
1.6 A.
35 mOhm maximum.
4.75 GHz minimum.
Surface mount, 0805 package (2.29mm x 1.73mm x 1.52mm).
88 minimum at 1 GHz.
-40°C to +125°C.
