| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
84,500 pcs
|
84500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Shielding | |
| Supplier Device Package | |
| Tolerance | |
| Type | |
| Width |

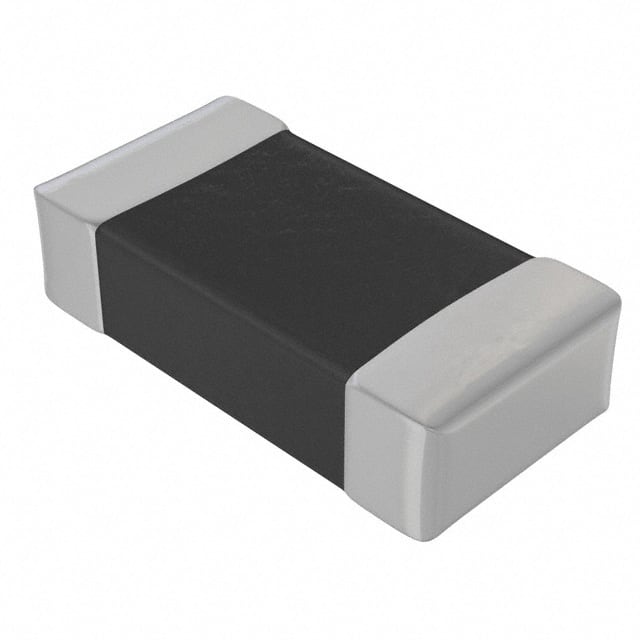

Abracon AIML-1206-120K-T is a shielded multilayer ferrite chip inductor designed for surface-mount assembly. It provides 12µH nominal inductance with ±10% tolerance, a minimum quality factor of 55 at 2MHz, and a minimum self-resonant frequency of 26MHz. The inductor is rated for a maximum DC resistance of 900mΩ and a rated current of 15mA.
The device uses a monolithic ferrite structure, which contributes to its compact size and lightweight design. Its magnetically shielded construction helps reduce cross coupling between neighboring components. The inductor offers excellent solderability and heat resistance for reflow soldering, and its symmetrical package has no polarity, simplifying PCB placement.
With a 1206 (3216 Metric) package measuring 3.20mm x 1.60mm x 1.40mm, this inductor suits space-constrained boards. It operates over a temperature range of -55°C to 125°C. Typical applications include resonance circuits, traps, filter circuits, and RF choke functions in communications, video, audio, and computing equipment.
The inductance is 12 µH with a tolerance of ±10%.
The rated current is 15 mA.
The maximum DC resistance is 900 mΩ.
The minimum self-resonant frequency is 26 MHz.
The inductor comes in a 1206 (3216 Metric) surface-mount package.
It operates from -55°C to 125°C.
Yes, it is shielded and uses multilayer ferrite construction.
