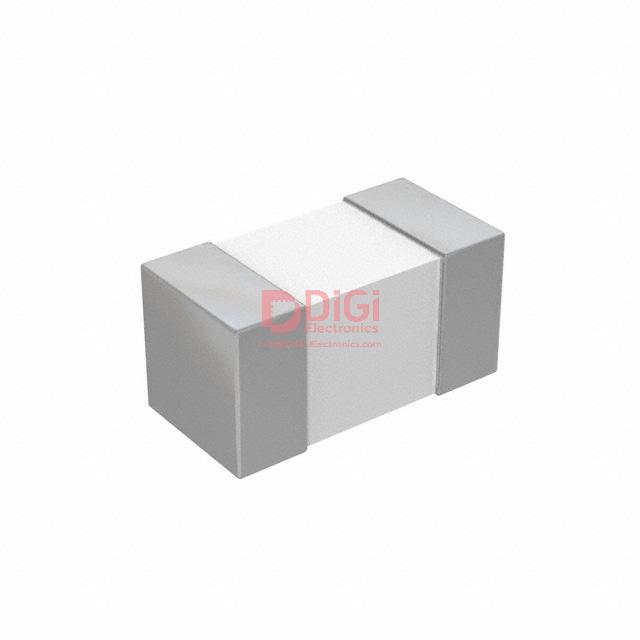

AIMC04026N8ST The Abracon LLC AIMC04026N8ST is a multilayer fixed inductor with a 6.8 nH inductance and a 300 mA current rating. It features a surface mountable 0402 package.
Mfr Part #:

AIMC04026N8ST

Available from 1 distributors
Mfr Name: Abracon LLC
Abracon LLC
The Abracon LLC AIMC04026N8ST is a multilayer fixed inductor with a 6.8 nH inductance and a 300 mA current rating. It features a surface mountable 0402 package.
✓ Total Stock: 10,000 pcs
$ Price Range: $0.20

AIMC04026N8ST Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
10,000 pcs
On Request
10000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AIMC04026N8ST Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating
DC Resistance
Inductance
Lead Style
Mounting Type
Operating Temperature
SVHC Present
Self Resonant Frequency
Shielding
Tolerance
Type
View Similar Products (0)

AIMC04026N8ST Description

Short technical summary and product information.

This Abracon LLC AIMC04026N8ST is a multilayer fixed inductor designed for surface mount applications. It offers an inductance value of 6.8 nH with a tolerance of ±0.3nH, and a maximum current rating of 300 mA. The DC resistance is specified as 300 mΩ maximum.



With an unshielded construction and a ceramic core, this inductor operates effectively within a temperature range of -55°C to 125°C. Its self-resonant frequency is 3.9 GHz, and it has a Q factor of 8 at 100 MHz. The component is housed in a compact 0402 (1005 Metric) package, suitable for various electronic designs.



The AIMC04026N8ST is packaged in Cut Tape (CT) & Digi-Reel® and Tape & Reel (TR) formats, facilitating automated assembly processes. Its multilayer construction ensures reliable performance in demanding applications.

AIMC04026N8ST Quick Information

Product Type: Fixed Inductor
Series: AIMC-0402
Canonical Name: Abracon LLC AIMC-0402-6N8S-T Multilayer Fixed Inductor 6.8 nH
Subcategory: Fixed Inductor

AIMC04026N8ST Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AIMC04026N8ST Estimated Pricing

Qty Low High
1+ $0.20 $0.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

AIMC04026N8ST Features

  • Multilayer fixed inductor with 6.8 nH inductance.
  • Rated for 300 mA maximum current.
  • Low DC resistance of 300 mOhm maximum.
  • Compact 0402 (1005 Metric) surface mount package.
  • Wide operating temperature range of -55°C to 125°C.

AIMC04026N8ST Applications

  • Suitable for RF signal filtering.
  • Used in impedance matching circuits.
  • Ideal for compact electronic designs.
  • Component for high-frequency applications.

AIMC04026N8ST FAQs

6 frequently asked questions generated from this part’s specifications.
What is the inductance value of the AIMC04026N8ST?

The inductance is 6.8 nH, measured at 100 MHz.

What is the maximum current rating?

The maximum current rating is 300 mA.

What is the DC resistance (DCR) of this inductor?

The maximum DC resistance is 300 mΩ.

What is the self-resonant frequency (SRF)?

The minimum self-resonant frequency is 3.9 GHz.

What is the package size and mounting type?

The inductor is in a 0402 (1005 Metric) surface mount package.

What is the tolerance of the inductance?

The inductance tolerance is ±0.3 nH.
