| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,539 pcs
|
3539 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Operating Temperature | |
| Output Type | |
| Reset Timeout | |
| Tape & Reel | |
| Voltage |
The AIC809-40GUTR from AAIC is a low-power microprocessor supervisor circuit designed to monitor power supplies in μP and digital systems. By eliminating external components, it offers high reliability and low cost.
This device operates within a voltage range of 0.9V to 6V. When the Vcc power supply drops below a preset threshold of 3.1V, a reset signal is asserted for at least 140ms. The AIC809-40GUTR is designed with a reset comparator to help identify invalid signals shorter than 140ms. Its low power consumption of 1µA makes it suitable for portable devices.

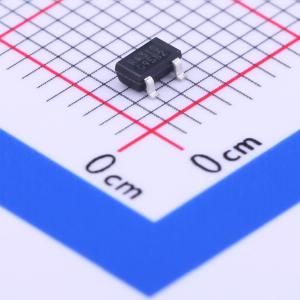

The AIC809-40GUTR is available in a compact SOT-23 surface-mount package, making it ideal for space-constrained applications. Its primary function is critical microprocessor monitoring, ensuring system stability during power fluctuations.
Key features include a 3.1V threshold voltage, a wide operating voltage range of 0.9V to 6V, and a low static current of 1µA. The reset signal is low-level active and has a timeout of 230ms. The operating temperature range is -40°C to +85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 0.9V to 6V.
The threshold voltage is 3.1V.
The reset timeout is 230ms.
The static current is 1µA.
The operating temperature range is -40°C to +85°C.
The AIC809-40GUTR is available in a SOT-23 package.
