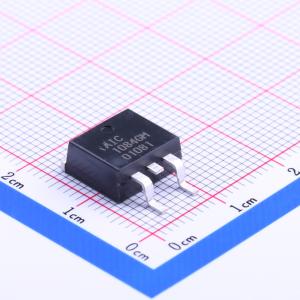

AIC1084GMTR The AAIC AIC1084GMTR is a low dropout linear voltage regulator capable of delivering up to 5A. It features an adjustable output voltage and built-in overcurrent and thermal shutdown protection.
Mfr Part #:

AIC1084GMTR

Available from 1 distributors
Mfr Name: AAIC
AAIC
The AAIC AIC1084GMTR is a low dropout linear voltage regulator capable of delivering up to 5A. It features an adjustable output voltage and built-in overcurrent and thermal shutdown protection.
✓ Total Stock: 1,646 pcs
$ Price Range: $0.28

AIC1084GMTR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
1,646 pcs
On Request
1646 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AIC1084GMTR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Features
Input Voltage
Noise
Operating Temperature
Output Current
Output Type
Output Voltage
View Similar Products (0)

AIC1084GMTR Description

Short technical summary and product information.

The AIC1084GMTR from AAIC is a versatile low dropout (LDO) linear voltage regulator designed for applications requiring high output current. It offers an adjustable output voltage ranging from 1.225V to 1.275V and can supply a maximum of 5A.



Key electrical characteristics include a low dropout voltage of 1.5V at 5A, a power supply ripple rejection (PSRR) of 72dB at 120Hz, and low noise of 0.003%Vout. The device operates within a temperature range of -40°C to +85°C.



Integrated protection features such as overcurrent protection and thermal shutdown enhance reliability by preventing damage from overload conditions. The AIC1084GMTR is supplied in a standard TO-263-2 power package, suitable for surface mounting.



This regulator is well-suited for various applications including motherboard I/O power, microprocessor power supplies, high-current regulation, and post-regulation for switching power supplies.

AIC1084GMTR Quick Information

Product Type: Linear Voltage Regulator
Canonical Name: AIC1084GMTR Low Dropout Linear Voltage Regulator
Subcategory: Low Dropout (LDO)

AIC1084GMTR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AIC1084GMTR Estimated Pricing

Qty Low High
1+ $0.28 $0.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

AIC1084GMTR Features

  • 5A maximum output current.
  • Adjustable output voltage range.
  • Low dropout voltage of 1.5V.
  • Overcurrent and thermal shutdown protection.
  • TO-263-2 surface mount package.

AIC1084GMTR Applications

  • Motherboard I/O power supplies.
  • Microprocessor power applications.
  • High current voltage regulation.
  • Switching power supply post-regulation.

AIC1084GMTR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage range of the AIC1084GMTR?

The output voltage is adjustable from 1.225V to 1.275V.

What is the maximum output current?

5A.

What is the dropout voltage at full load?

The dropout voltage is 1.5V at 5A output.

What is the input voltage requirement?

The input voltage is 7V.

What is the operating temperature range?

-40°C to +85°C.

What protection features does the regulator include?

Overcurrent protection and thermal shutdown.

What package is the AIC1084GMTR available in?

TO-263-2 package.
